SSM1A445F7
lmages are for reference only.SSM1A445F7
SSR RELAY SPST-NO 45A 48-600V
DatasheetSSR with Integrated Heat Sink
94,315 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
SSM1A445F7
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Schneider Electric |
| Series | Harmony |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | DIN Rail |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, Zero Cross |
| Voltage - Input | 90 ~ 140VAC |
| Voltage - Load | 48 V ~ 600 V |
| Load Current | 45 A |
| Termination Style | Screw Terminal |
| Operating Temperature | -30°C ~ 80°C |
| Package / Case | SSR with Integrated Heat Sink |
| Supplier Device Package | - |
| Approval Agency | CSA, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | SSM1A |
| On-State Resistance (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SSM1A445BD | SSM1A112B7 | SSM1A112B7R | SSM1A112BD |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

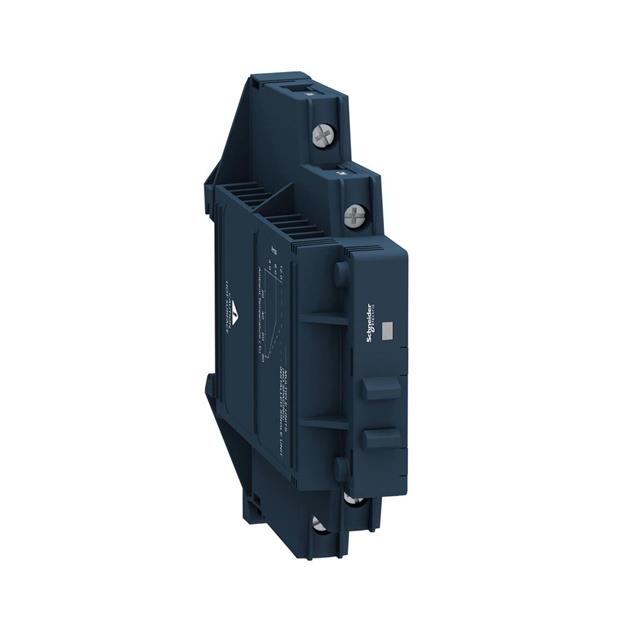

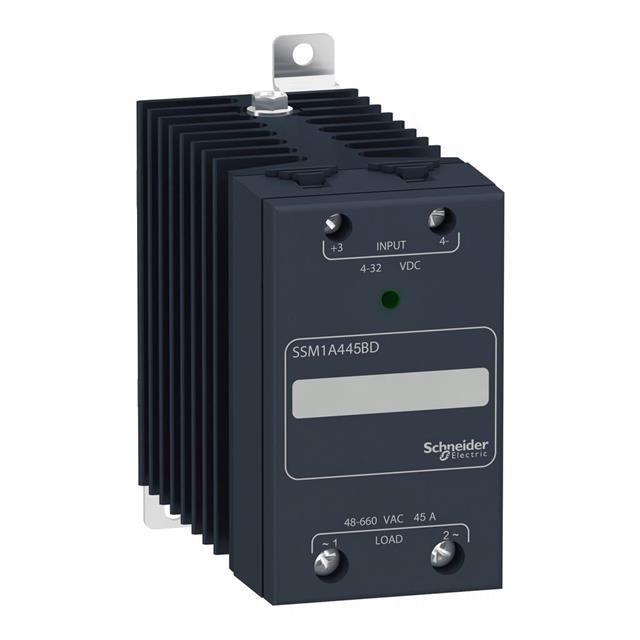

| Description | SSR RELAY SPST-NO 45A 48-600V | SSR RELAY SPST-NO 12A 24-280V | SSR RELAY SPST-NO 12A 24-280V | SSR RELAY SPST-NO 12A 24-280V |
| Series | Harmony | Harmony | Harmony | Harmony |
| Packaging | Box | Box | Box | Box |
