SSM6N44FE,LM
lmages are for reference only.SSM6N44FE,LM
MOSFET 2N-CH 30V 0.1A ES6
DatasheetSOT-563, SOT-666
78,305 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 100mA 150mW Surface Mount ES6
SSM6N44FE,LM
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 100mA |
| Rds On (Max) @ Id, Vgs | 4Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 1.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 8.5pF @ 3V |
| Power - Max | 150mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | ES6 |
| Base Product Number | SSM6N44 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

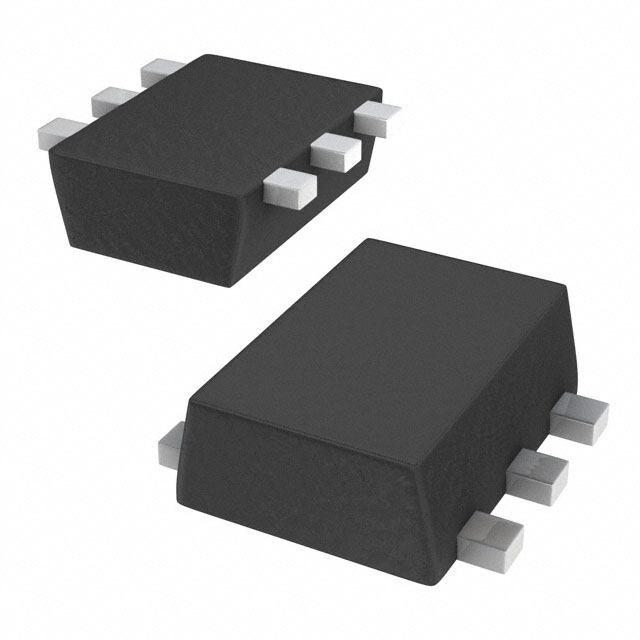

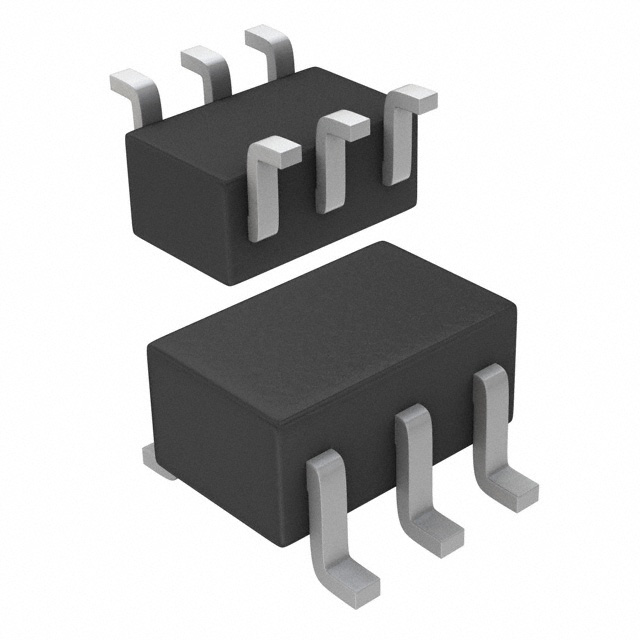

| Part Number | SSM6N40TU,LF | SSM6N42FE(TE85L,F) | SSM6N43FU,LF | SSM6N44FU,LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 30V 1.6A UF6 | MOSFET 2N-CH 20V 0.8A ES6 | MOSFET 2N-CH 20V 0.5A US6 | MOSFET 2N-CH 30V 0.1A US6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
