STD-CTZ-1-38.4M
lmages are for reference only.STD-CTZ-1-38.4M
CRYSTAL 38.4MHZ 7PF WTHRM SMD
Datasheet4-SMD, No Lead
84,623 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
38.4 MHz ±10ppm Crystal 7pF 60 Ohms 4-SMD, No Lead
STD-CTZ-1-38.4M
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | NDK America, Inc. |
| Series | NX2016SF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | MHz Crystal |
| Frequency | 38.4 MHz |
| Frequency Stability | ±12ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 7pF |
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -30°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

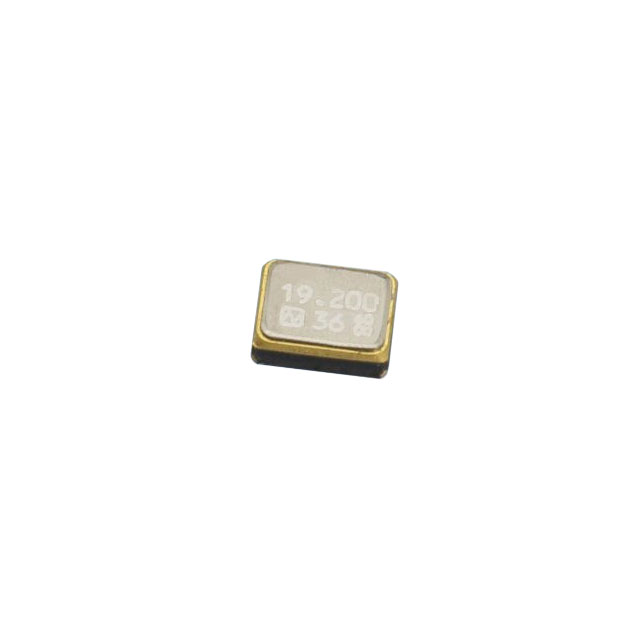

| Part Number | STD-CTZ-1-19.2M | STD-CTZ-1-19.2M | STD-CTZ-1-38.4M | ABM12AIG-24.000MHZ-10-1Z-T |
| Manufacturer | NDK America, Inc. | NDK America, Inc. | NDK America, Inc. | Abracon LLC |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CRYSTAL 19.2MHZ 7PF WTHRM SMD | CRYSTAL 19.2MHZ 7PF WTHRM SMD | CRYSTAL 38.4MHZ 7PF WTHRM SMD | CRYSTAL 24.000MHZ 10PF SMD |
| Series | NDK America, Inc. | NDK America, Inc. | NDK America, Inc. | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
