STGIB10CH60S-XZ
lmages are for reference only.STGIB10CH60S-XZ
DISCRETE
Datasheet26-PowerDIP Module (1.146", 29.10mm)
76,647 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Driver Module IGBT 3 Phase Inverter 600 V 15 A 26-PowerDIP Module (1.146", 29.10mm)
STGIB10CH60S-XZ
| Category | Discrete Semiconductor Products - Power Driver Modules - |
| Manufacturer | STMicroelectronics |
| Series | SLLIMM - 2nd |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Current | 15 A |
| Voltage | 600 V |
| Voltage - Isolation | 1600Vrms |
| Mounting Type | Through Hole |
| Package / Case | 26-PowerDIP Module (1.146", 29.10mm) |
| Grade | - |
| Qualification | - |
| Base Product Number | STGIB10 |
| Product Attribute | |
|
 |
 |

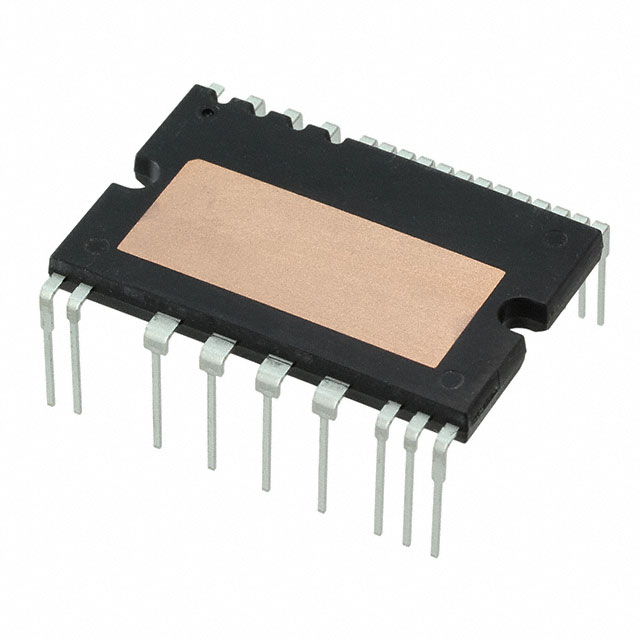

| Part Number | STGIB10CH60S-L | STGIB10CH60TS-E | STGIB10CH60TS-L | STGIB10CH60TS-LZ |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SLLIMM 2ND SERIES IPM, 3-PHASE I | SLLIMM 2ND SERIES IPM, 3-PHASE I | SLLIMM(TM) - 2ND SERIES IPM, 3-P | SLLIMM 2ND SERIES IPM, 3-PHASE I |
| Series | SLLIMM™ | SLLIMM™ | SLLIMM™ | SLLIMM™ |
| Packaging | Tube | Tube | Tube | Tube |
