STI33N60M6
lmages are for reference only.STI33N60M6
MOSFET N-CH 600V 25A I2PAK
DatasheetTO-262-3 Long Leads, I2PAK, TO-262AA
46,007 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 25A (Tc) 190W (Tc) Through Hole TO-262 (I2PAK)
STI33N60M6
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | MDmesh™ M6 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 12.5A, 10V |
| Vgs(th) (Max) @ Id | 4.75V @ 250µA |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1515 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 190W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-262 (I2PAK) |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Base Product Number | STI33 |
| Gate Charge (Qg) (Max) @ Vgs | 33.4 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

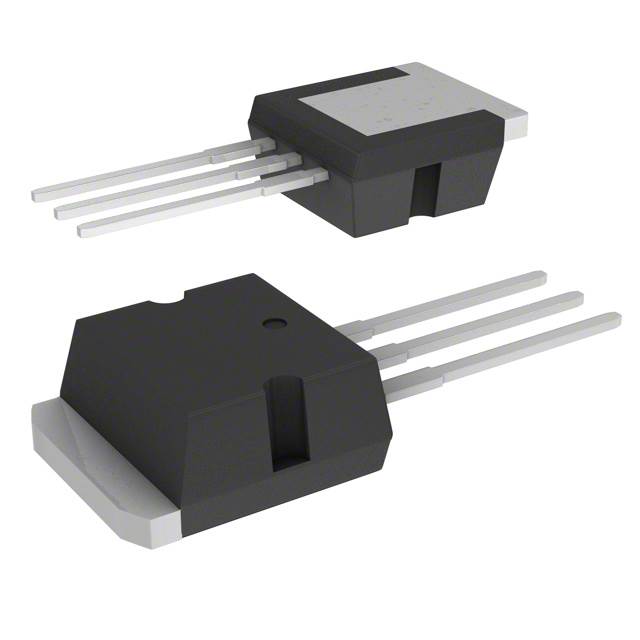

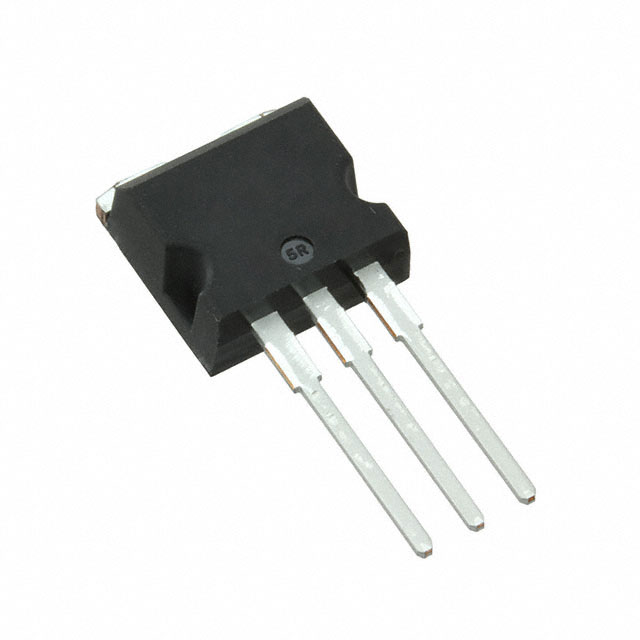

| Part Number | STI33N60M2 | STI33N65M2 | STI300N4F6 | STI30N65M5 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 600V 26A I2PAK | MOSFET N-CH 650V 24A I2PAK | MOSFET N CH 40V 160A I2PAK | MOSFET N-CH 650V 22A I2PAK |
| Series | MDmesh™ II Plus | MDmesh™ M2 | DeepGATE™, STripFET™ VI | MDmesh™ V |
| Packaging | Tube | Tube | Tube | Tube |
