Product CatalogPart Number
STU-053A16AX
Manufacturer
Mitsumi Electric Company LtdDescription
SWITCH TACTILE SPST-NO 0.02A 15V
Datasheet
DatasheetPackage
-
In Stock
56,472 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
STU-053A16AX
STU-053A16AX
lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
Quick Inquiry
STU-053A16AX
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | Mitsumi Electric Company Ltd |
| Series | STU |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | RoHS Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 0.53mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | SMD (SMT) Tab |
| Outline | 2.80mm x 1.90mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 163gf |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | - |
| Actuator Material | - |
| Switch Travel | - |
| Mechanical Life | 300,000 Cycles |
| Base Product Number | STU-053 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

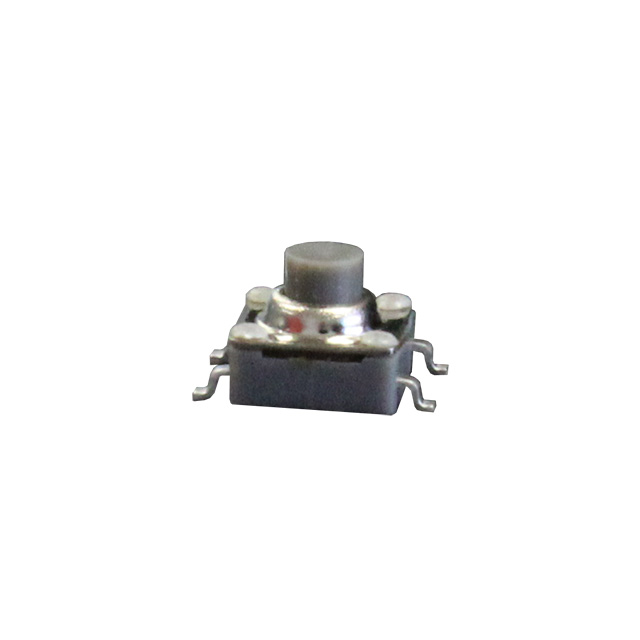

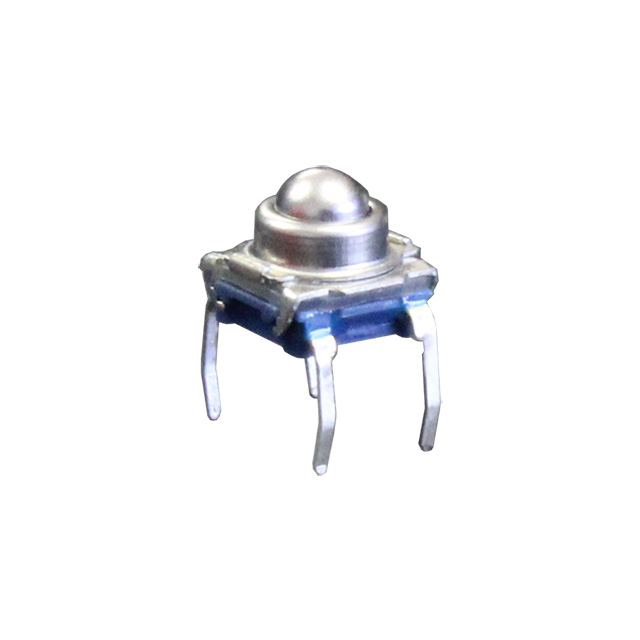

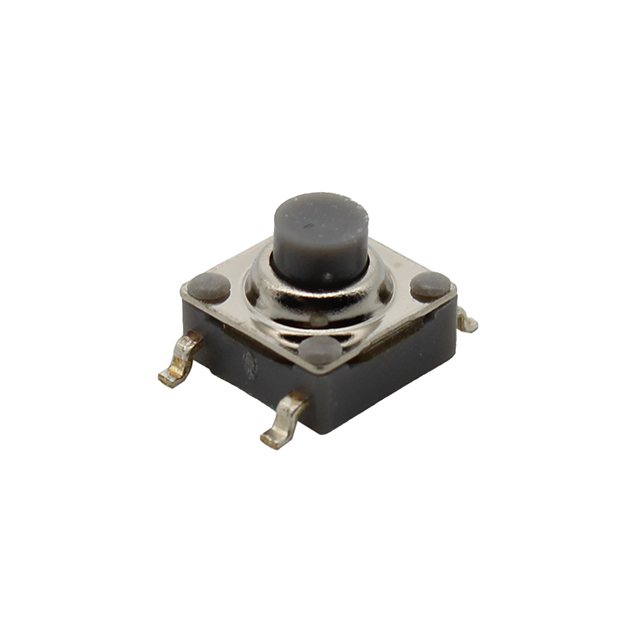

| Part Number | STHW-690-N | STR5.0LF160QG | STJF300Q | STR5.0LF260QG |
| Manufacturer | Bourns Inc. | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| RoHS Status | RoHS non-compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 48V | SWITCH TACTILE SPST-NO 0.05A 48V | SWITCH TACTILE SPST-NO 0.05A 48V |
| Series | ST | STR | STJ | STR |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> |
