SUL942440
lmages are for reference only.SUL942440
SSR 23A/12-280VAC/TVS/CTRL 3-32V
DatasheetSSR with Integrated Heat Sink
70,206 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
SUL942440
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Celduc Inc. |
| Series | Celpac® |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount, DIN Rail |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, Zero Cross |
| Voltage - Input | 3 ~ 32VDC |
| Voltage - Load | 12 V ~ 280 V |
| Load Current | 23 A |
| Termination Style | Screw Terminal |
| Operating Temperature | -40°C ~ 80°C |
| Package / Case | SSR with Integrated Heat Sink |
| Supplier Device Package | - |
| Approval Agency | CE, cURus |
| Grade | - |
| Qualification | - |
| Base Product Number | SUL942 |
| On-State Resistance (Max) | 16 mOhms |
| Product Attribute |  |
 |
 |
 |

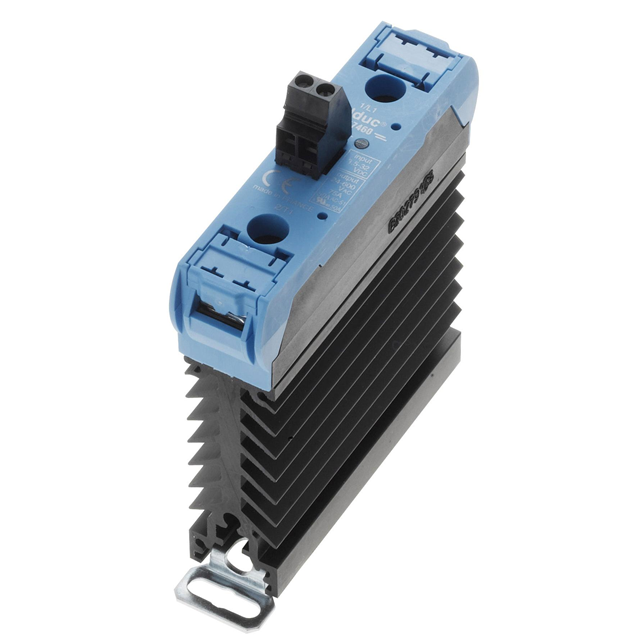

| Part Number | SUL942460 | SUL765070 | SUL842070 | SUL842770 |
| Manufacturer | Celduc Inc. | Celduc Inc. | Celduc Inc. | Celduc Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 25A 12-280V | SSR RELAY SPST-NO 32A 24-510V | SSR RELAY SPST-NO 25A 12-275V | SSR RELAY SPST-NO 25A 12-275V |
| Series | celpac 2G® | celpac 2G® | celpac 2G® | celpac 2G® |
| Packaging | Box | Box | Box | Box |
