SZR-MY4-N1-AC220V
lmages are for reference only.SZR-MY4-N1-AC220V
RELAY GEN PURPOSE 4PDT 3A 220V
Datasheet-
97,883 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 220VAC Coil Socketable
SZR-MY4-N1-AC220V
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SZR-MY |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 220VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Load - Max Switching | 750VA, 375W |
| Coil Current | 9.3 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 165 VAC |
| Must Release Voltage | 66 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | - |
| Contact Material | Silver (Ag) |
| Approval Agency | CE, CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 12.95 kOhms |
| Base Product Number | SZR-MY4 |
| Product Attribute |  |
|
 |
 |

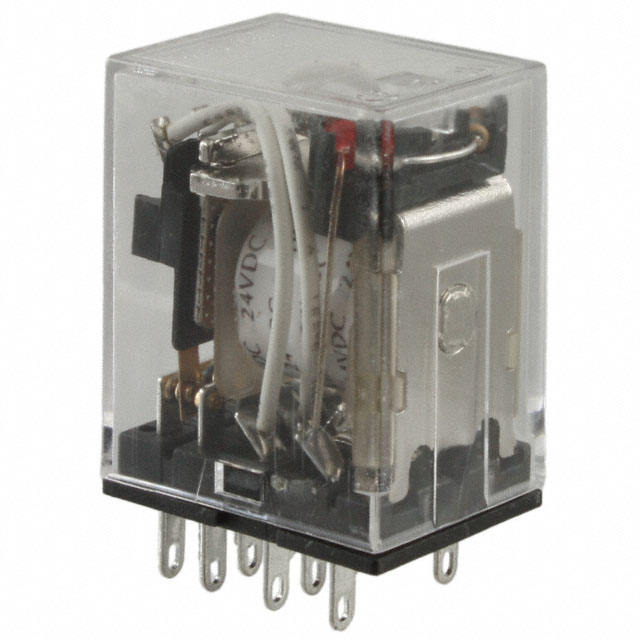

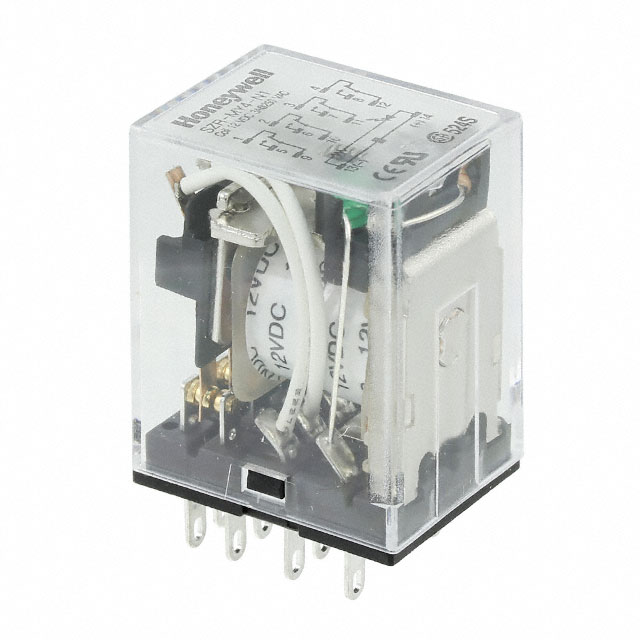

| Part Number | SZR-MY4-N1-AC24V | SZR-MY4-N1-AC110/120 | SZR-MY4-N1-DC12V | SZR-MY4-N1-DC24V |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE 4PDT 3A 24V | SZR-MY4-N1-AC110/120 | RELAY GEN PURPOSE 4PDT 3A 12V | RELAY GEN PURPOSE 4PDT 3A 24V |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
