T60405R6166X033
lmages are for reference only.T60405R6166X033
CMC 1.53MH 18A 2LN 1.6K OHM TH
DatasheetVertical, 4 PC Pin
88,281 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.53 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 1.6 kOhms @ 100 kHz 18A DCR
T60405R6166X033
| Category | Filters - Common Mode Chokes - |
| Manufacturer | VACUUMSCHMELZE |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 1.53 mH @ 100 kHz |
| Current Rating (Max) | 18A |
| DC Resistance (DCR) (Max) | - |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 130°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.496" L x 0.827" W (38.00mm x 21.00mm) |
| Height (Max) | 1.508" (38.30mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | 1.6 kOhms @ 100 kHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

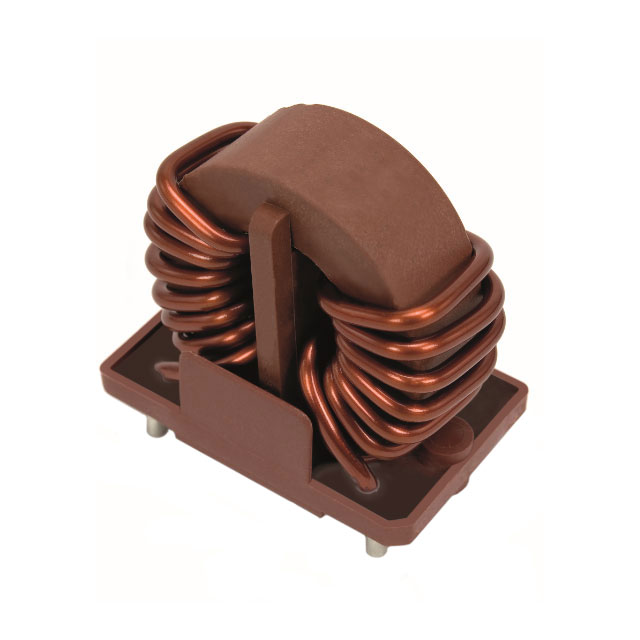

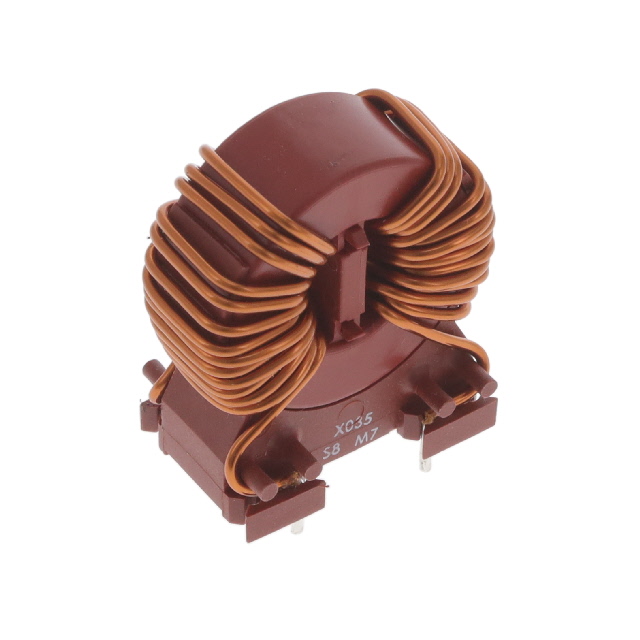

| Part Number | T60405R6166X035 | T60405R6166X039 | T60405R6166X019 | T60405R6166X028 |
| Manufacturer | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE | VACUUMSCHMELZE |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CMC 22A TH | CMC 750UH 18A 2LN 830 OHM TH | 6166X019 | 6166X028 |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
