T92S11A12-240
lmages are for reference only.T92S11A12-240
RELAY GEN PURPOSE DPDT 30A 240V
Datasheet-
63,356 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 240VAC Coil Through Hole
T92S11A12-240
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | T92 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 240VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 600VAC - Max |
| Load - Max Switching | 18000VA |
| Coil Current | 63.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 24 VAC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -55°C ~ 65°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 3.8 kOhms |
| Base Product Number | T92S1 |
| Product Attribute |  |
 |
 |
|

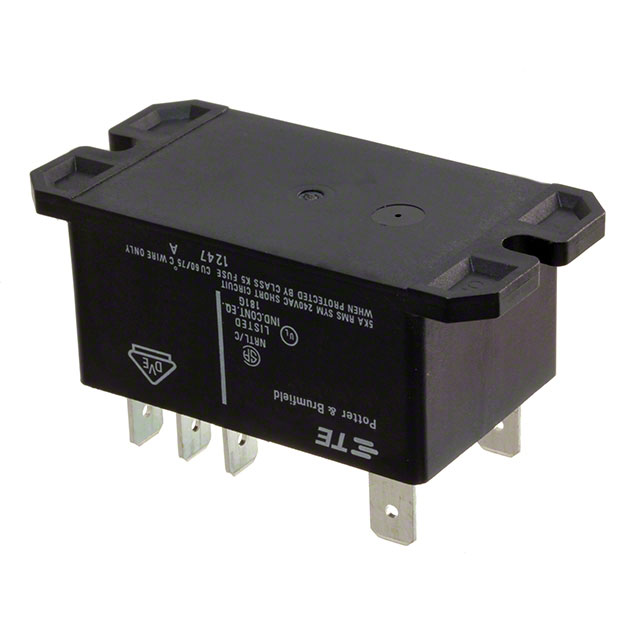

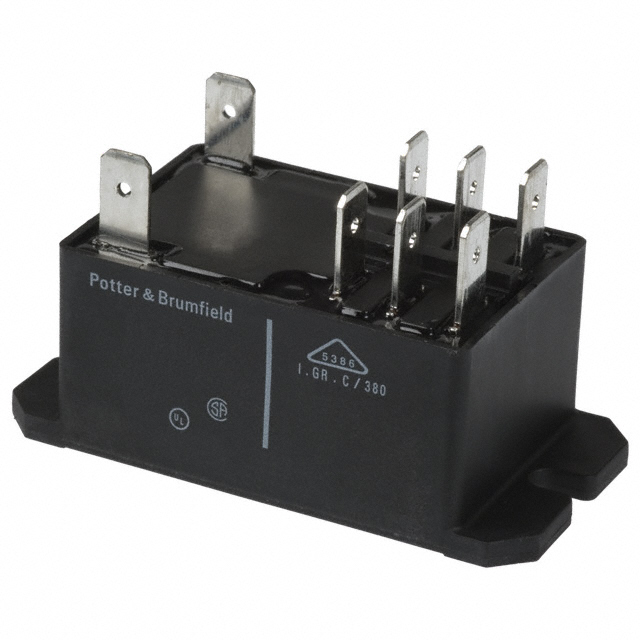

| Part Number | T92S11A12-24 | T92S11A22-12 | T92S11A22-24 | T92-4012 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE DPDT 30A 24V | RELAY GEN PURPOSE DPDT 30A 12V | RELAY GEN PURPOSE DPDT 30A 24V | General Purpose Relays |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| Packaging | Bulk | Bulk | Bulk | Bulk |
