T9GS5L24-15
lmages are for reference only.T9GS5L24-15
RELAY GEN PURPOSE SPDT 20A 15V
Datasheet-
81,973 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 15VDC Coil Through Hole
T9GS5L24-15
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | T9G |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 15VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 480VAC - Max |
| Load - Max Switching | 9600VA |
| Coil Current | 60 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 11.25 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 15 ms |
| Release Time | 22 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 249 Ohms |
| Base Product Number | T9GS5 |
| Product Attribute |  |
 |
 |
 |

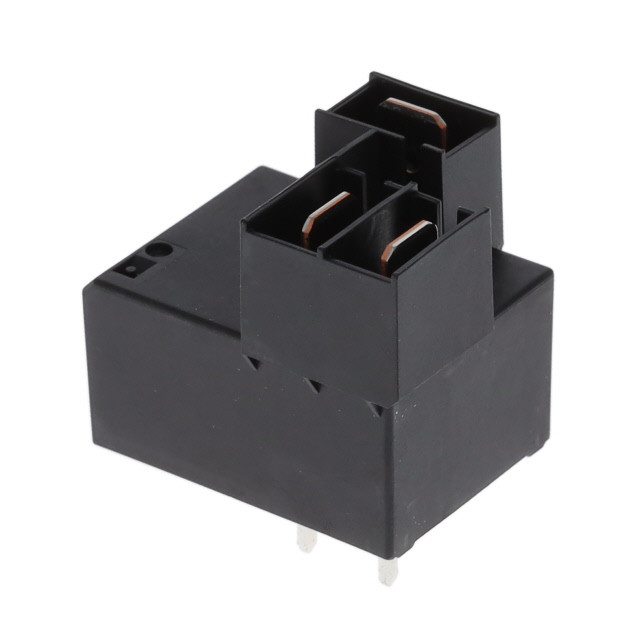

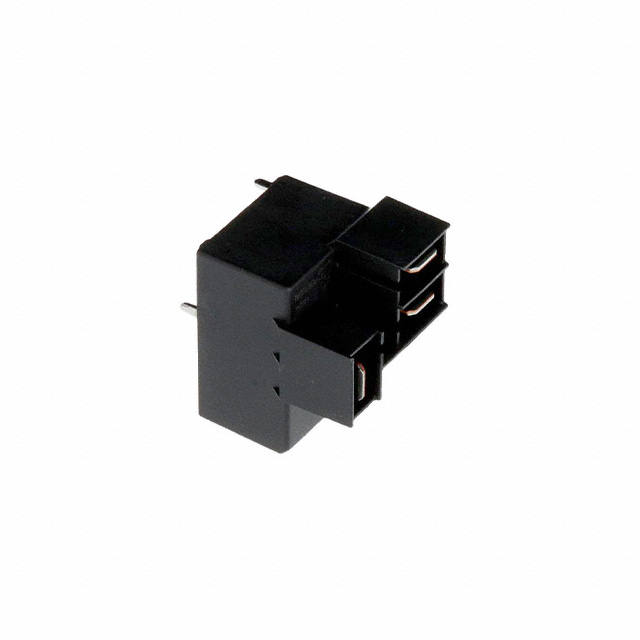

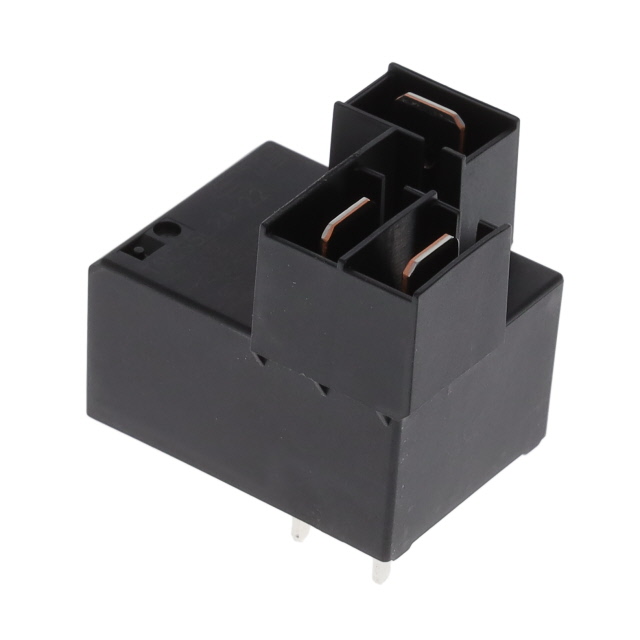

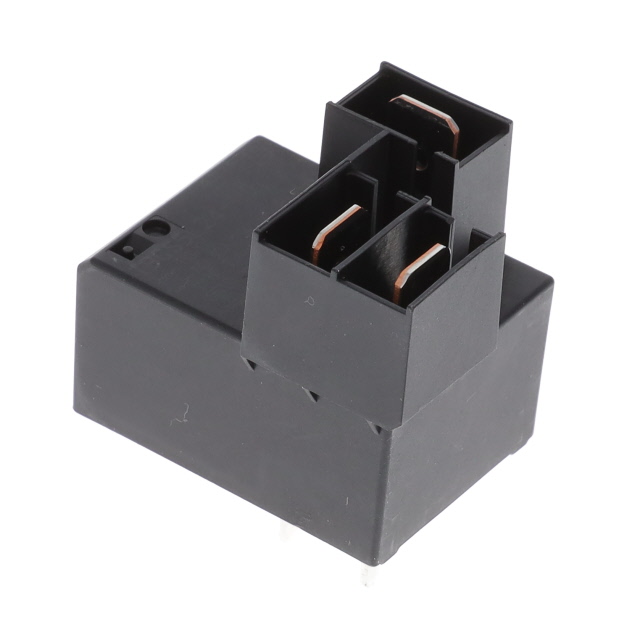

| Part Number | T9GS5L24-110 | T9GS5L24-12 | T9GS5L24-18 | T9GS5L24-22 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPDT 20A 110V | RELAY GEN PURPOSE SPDT 20A 12V | RELAY GEN PURPOSE SPDT 20A 18V | RELAY GEN PURPOSE SPDT 20A 22V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Bulk | Bulk | Bulk |
