T9GV2L24-22

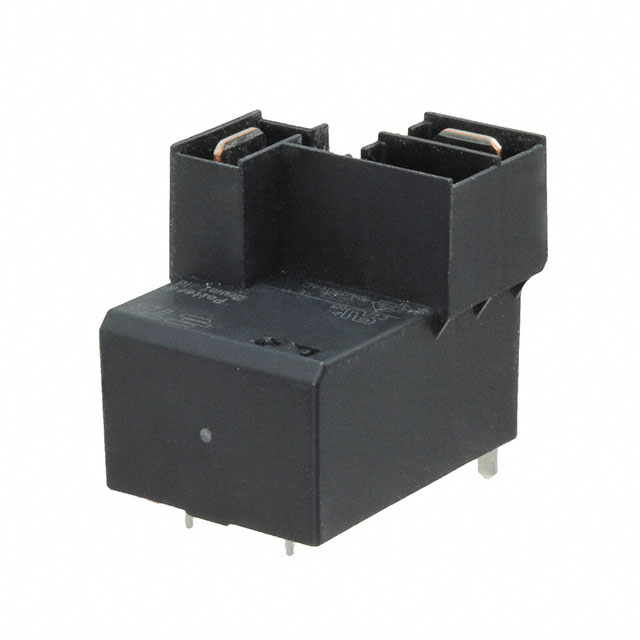

lmages are for reference only.T9GV2L24-22
RELAY GEN PURPOSE SPST 20A 22V
Datasheet-
77,821 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NC (1 Form B) 22VDC Coil Through Hole
T9GV2L24-22
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | T9G |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 22VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 480VAC - Max |
| Load - Max Switching | 9600VA |
| Coil Current | 41 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class B |
| Must Operate Voltage | 16.5 VDC |
| Must Release Voltage | 2.2 VDC |
| Operate Time | 15 ms |
| Release Time | 22 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 538 Ohms |
| Base Product Number | T9GV2 |
| Product Attribute |  |
 |
 |
 |
| Part Number | T9GV2L24-24 | T9GV2L24-110 | T9GV2L24-12 | T9GV2L24-15 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 20A 24V | RELAY GEN PURPOSE SPST 20A 110V | RELAY GEN PURPOSE SPST 20A 12V | RELAY GEN PURPOSE SPST 20A 15V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
