Product CatalogPart Number
TAJD156M020RNJ
Manufacturer
KYOCERA AVXDescription
CAP TANT 15UF 20% 20V 2917
Datasheet
DatasheetPackage
2917 (7343 Metric)
In Stock
65,135 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TAJD156M020RNJ
TAJD156M020RNJ
lmages are for reference only.Payment Methods
Delivery Services
15 µF Molded Tantalum Capacitors 20 V 2917 (7343 Metric)
Quick Inquiry
TAJD156M020RNJ
Specifications
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | KYOCERA AVX |
| Series | TAJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Lead Spacing | - |
| Manufacturer Size Code | D |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | TAJD156M020ANJ | TAJD156M020SNJ | TAJD156M025HNJ | TAJD156M025SNJ |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | CAP TANT 15UF 20% 20V 2917 | CAP TANT 15UF 20% 20V 2917 | CAP TANT 15UF 20% 25V 2917 | CAP TANT 15UF 20% 25V 2917 |
| Series | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
TAJD106J035HNJ
KYOCERA AVX
TAJD106J035RNJ
KYOCERA AVX
TAJD106K025ANJ
KYOCERA AVX
TAJD106K025H
KYOCERA AVX
TAJD106K025HNJ
KYOCERA AVX
TAJD106K025HY
KYOCERA AVX
TAJD106K025RNJ
KYOCERA AVX
TAJD106K025RNJV
KYOCERA AVX
TAJD106K025SNJ
KYOCERA AVX

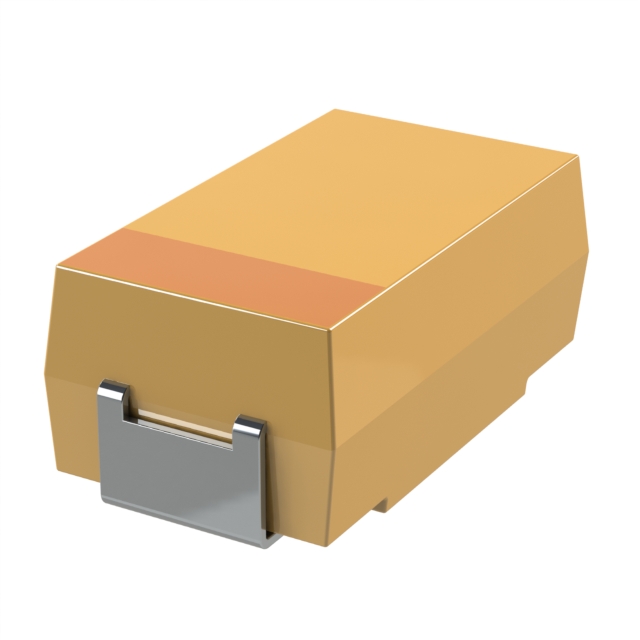

TAJD106K025TNJV
