TB62213AFG,8,EL
lmages are for reference only.TB62213AFG,8,EL
IC MOTOR DRIVER BIPOLAR 28HSOP
Datasheet28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
17,494 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar Motor Driver Power MOSFET Parallel 28-HSOP
TB62213AFG,8,EL
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 2.4A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 38V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP |
| Base Product Number | TB62213 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

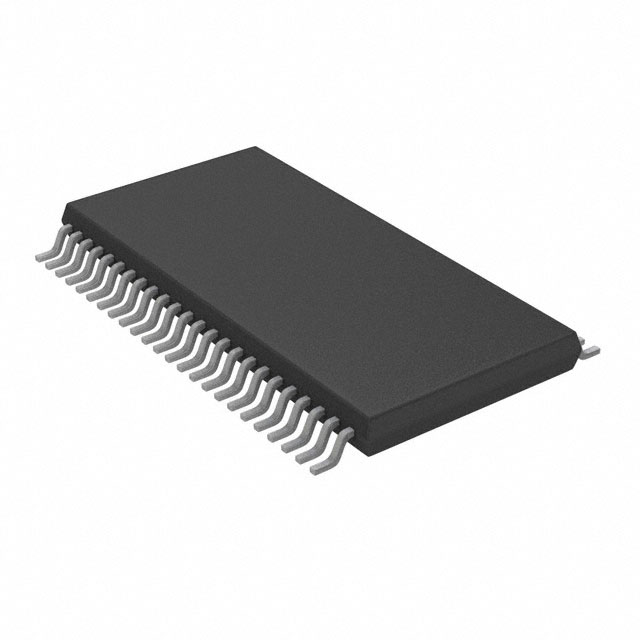

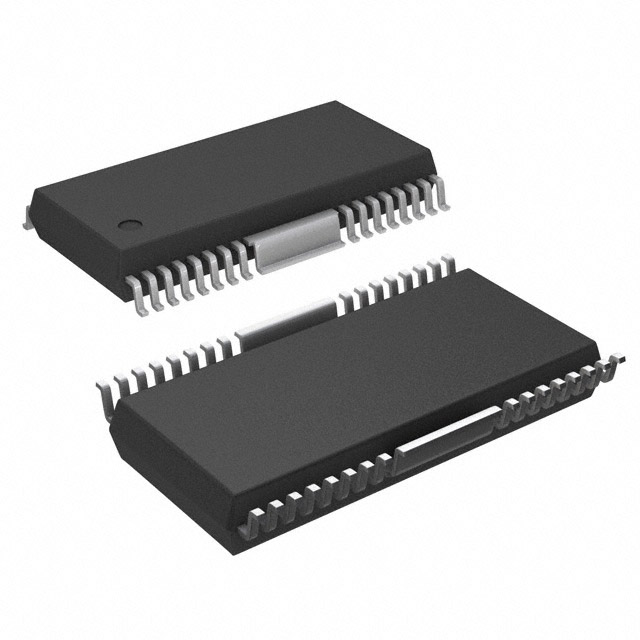

| Part Number | TB62213AFG,8,EL | TB62213AFG,C8,EL | TB62213AFG,C8,EL | TB62213AFNG,C8,EL |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MOTOR DRIVER BIPOLAR 28HSOP | IC MOTOR DRIVER BIPOLAR 28HSOP | IC MOTOR DRIVER BIPOLAR 28HSOP | IC MOTOR DRIVER BIPOLAR 48HTSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
