TB62215AFG,C8,EL

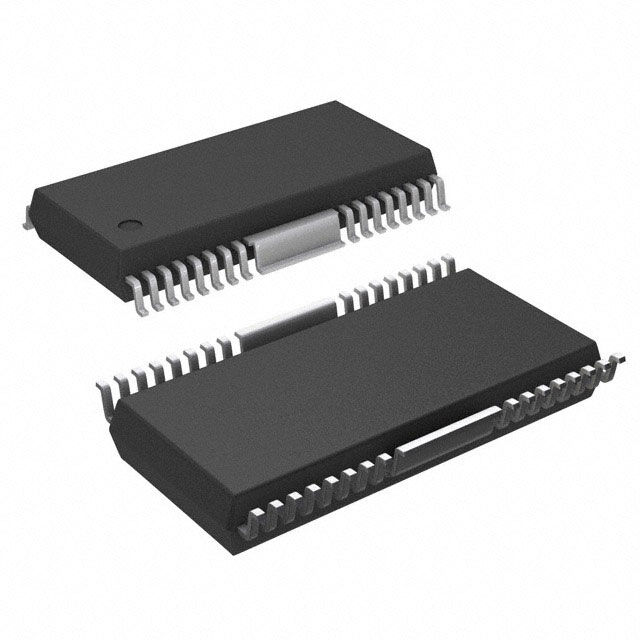

lmages are for reference only.TB62215AFG,C8,EL
STEPPER MOTOR DRIVER, 40V/2.0A,
Datasheet28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
76,539 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar Motor Driver Power MOSFET Parallel 28-HSOP
TB62215AFG,C8,EL
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 38V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP |
| Base Product Number | TB62215 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | TB62215AFG,8,EL | TB62215AFG,8,EL | TB62215AFG,C8,EL | TB62210FNG,C8,EL |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MOTOR DRIVER BIPOLAR 28HSOP | IC MOTOR DRIVER BIPOLAR 28HSOP | STEPPER MOTOR DRIVER, 40V/2.0A, | STEPPER MOTOR DRIVER IC, 40V/1.0 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
