TB67S589FNG(O,EL)

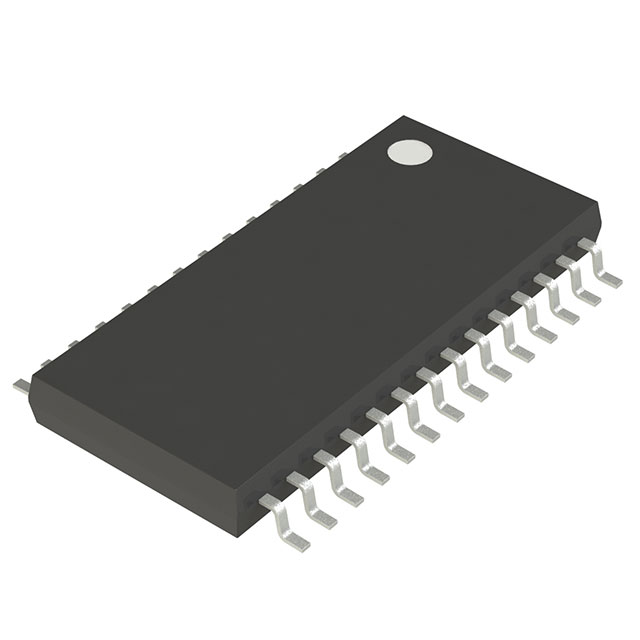

lmages are for reference only.TB67S589FNG(O,EL)
STEPPER MOTOR DRIVER, 50V, 3A, 1
Datasheet28-TSSOP (0.173", 4.40mm Width) Exposed Pad
46,941 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar Motor Driver BiCDMOS PWM 28-HTSSOP
TB67S589FNG(O,EL)
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | PWM |
| Technology | BiCDMOS |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16, 1/32 |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 8.2V ~ 44V |
| Voltage - Load | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | TB67S589FNG(O,EL) | TB67S580FNG,EL | TB67S580FNG,EL | TB67S581FNG,EL |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | |||
| Description | STEPPER MOTOR DRIVER, 50V, 3A, 1 | STEPPING MOTOR CONTROL DRIVER IC | STEPPING MOTOR CONTROL DRIVER IC | STEPPING MOTOR CONTROL DRIVER IC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
