Product CatalogPart Number
TBP03R3-350-09BK
Manufacturer
Same SkyDescription
2~24 POLES, PLUGGABLE, RECEPTACL
Datasheet
DatasheetPackage
-
In Stock
19,570 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TBP03R3-350-09BK
TBP03R3-350-09BK
lmages are for reference only.Payment Methods
Delivery Services
18 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Quick Inquiry
TBP03R3-350-09BK
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Same Sky |
| Series | TBP03R3-350 |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 18 |
| Positions Per Level | 9 |
| Number of Levels | 2 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 8A |
| Voltage - IEC | 250 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | -40°C ~ 130°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Tail Length | 0.102" (2.60mm) |
| Insulation Height | 0.524" (13.30mm) |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

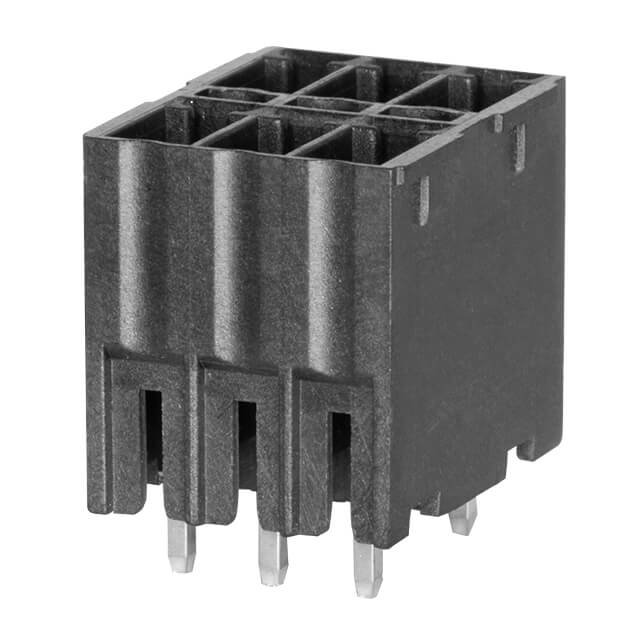

| Part Number | TBP03R3-350-02BK | TBP03R3-350-03BK | TBP03R3-350-04BK | TBP03R3-350-05BK |
