TBPMANN015PGUCV

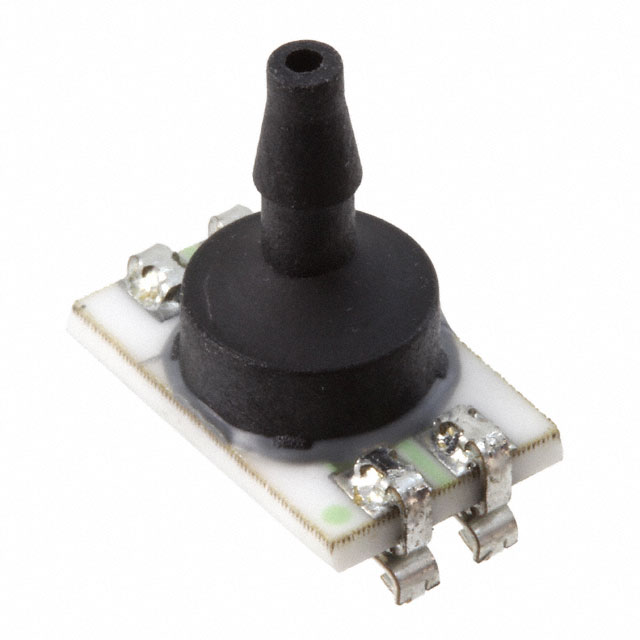

lmages are for reference only.TBPMANN015PGUCV
SENSOR 15PSIG 0.08" .0275V 4SMT
Datasheet4-SMD, J-Lead, Top Port
27,269 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.08" (2.54mm) Tube 0 mV ~ 27.5 mV (5V) 4-SMD, J-Lead, Top Port
TBPMANN015PGUCV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TBP |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | TBPMANN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 27.5 mV (5V) |
| Accuracy | ±0.15% |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.08" (2.54mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | SMD (SMT) Tab |
| Maximum Pressure | 60PSI (413.69kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead, Top Port |
| Supplier Device Package | 4-SMT |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|

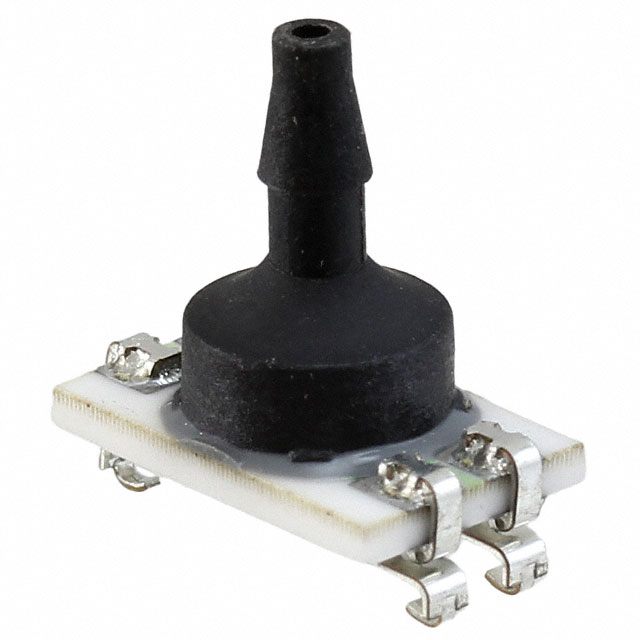

| Part Number | TBPMANN015PGUCV | TBPMANN001PGUCV | TBPMANN005PGUCV | TBPMANN060PGUCV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 15PSIG 0.08" .0275V 4SMT | SENSOR 1PSIG 0.11" .0075V 4SMT | SENSOR 5PSIG 0.11" .025V 4SMT | SENSOR 60PSIG 0.08" .0065V 4SMT |
| Series | TBP | TBP | TBP | TBP |
| Packaging | Bulk | Tray | Tray | Bulk |
