TCF1
lmages are for reference only.TCF1
FUSE RECT 1A 600VAC/300VDC BLADE
DatasheetBlade Type, Module
83,203 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1A 600 VAC 300 VDC Fuse Rectangular Requires Holder
TCF1
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | CUBEFuse™ TCF |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Requires Holder |
| Fuse Type | Rectangular |
| Current Rating (Amps) | 1A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | - |
| Approval Agency | CE, CSA, UL |
| Operating Temperature | -40°C ~ 80°C |
| Breaking Capacity @ Rated Voltage | 300kA AC, 100kA DC |
| Package / Case | Blade Type, Module |
| Size / Dimension | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) |
| Base Product Number | - |
| Voltage Rating - DC | 300 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute | |
 |
|
 |

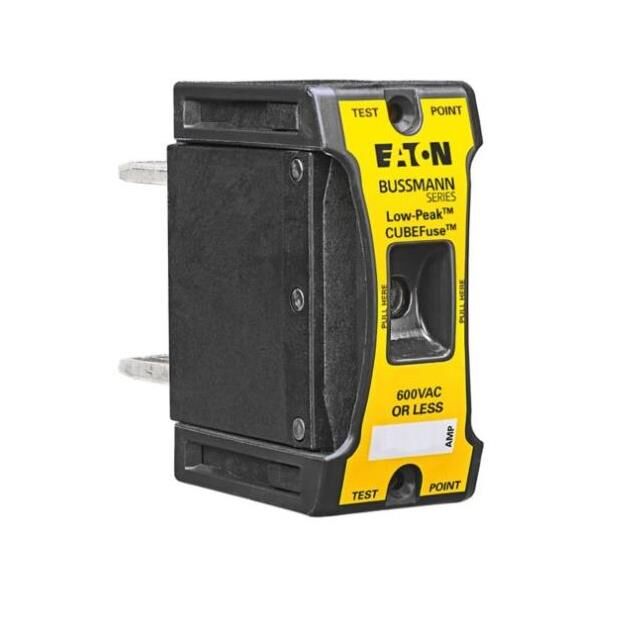

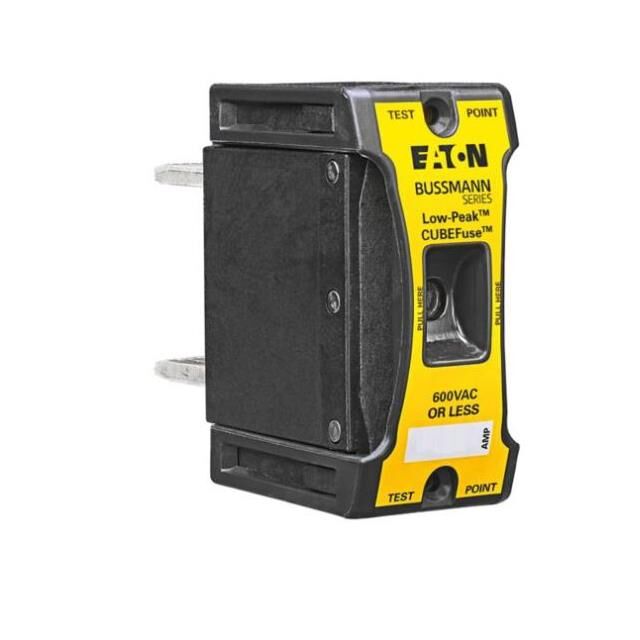

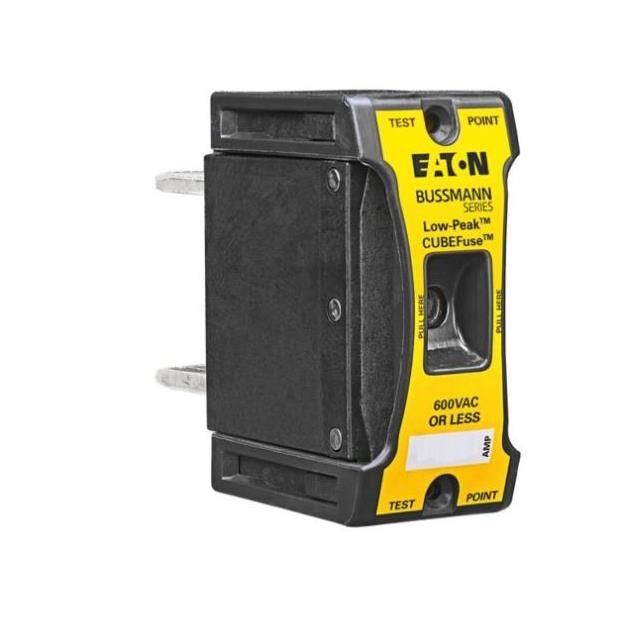

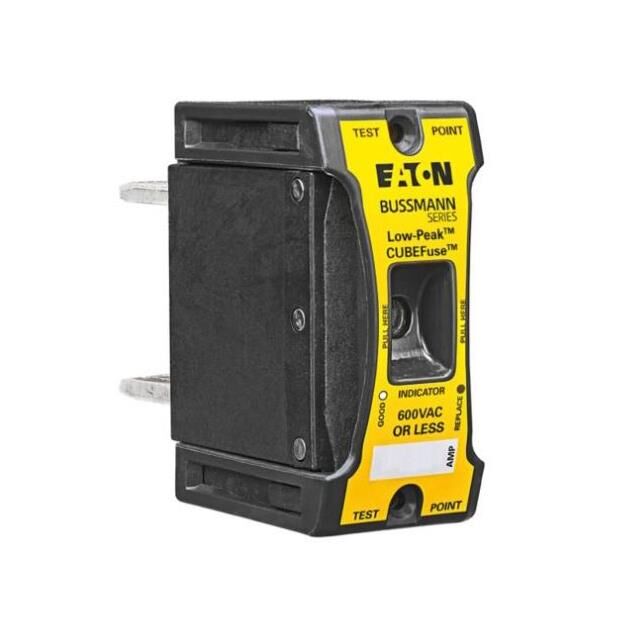

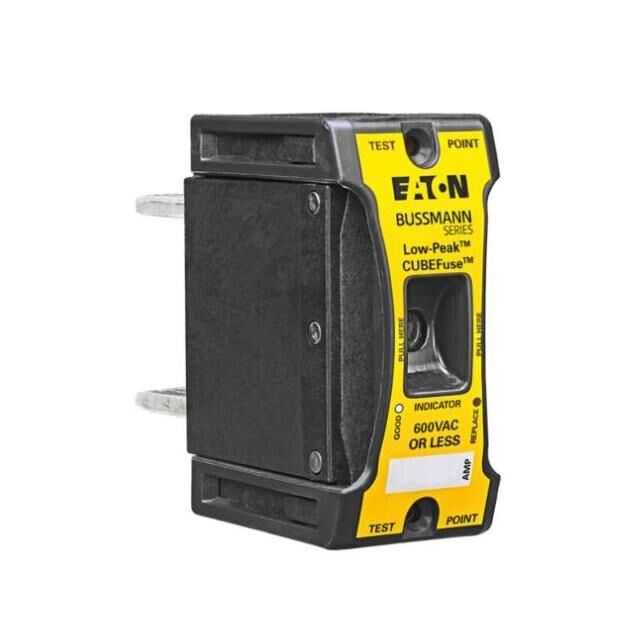

| Part Number | TCF100RN | TCF10RN | TCF110 | TCF110RN |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | CUBEFUSE 100 AMP NON-INP | FUSE DUAL ELEMENT 10A | TIME DELAY CUBEFUSE 110A IND | TIME DELAY CUBEFUSE 110A NON-IND |
| Series | * | * | CUBEFuse™ TCF | TCF |
| Packaging | Bulk | Bulk | Bulk | Bulk |
