TCPT1600X01
lmages are for reference only.TCPT1600X01
SENSOR OPT SLOT PHOTOTRANS MODUL
DatasheetModule, No Lead, Slot Type
48,920 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optical Sensor Through-Beam 0.118" (3mm) Phototransistor Module, No Lead, Slot Type
TCPT1600X01
| Category | Sensors, Transducers - Optical Sensors - Photointerrupters Slot Type Transistor Output |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Sensing Distance | 0.118" (3mm) |
| Sensing Method | Through-Beam |
| Output Configuration | Phototransistor |
| Current - DC Forward (If) (Max) | 25 mA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Response Time | 9µs, 16µs |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | Module, No Lead, Slot Type |
| Type | - |
| Base Product Number | TCPT1600 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

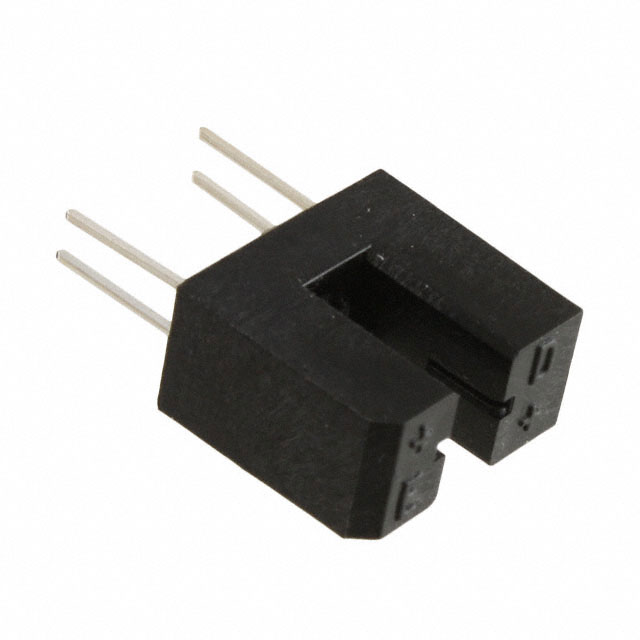

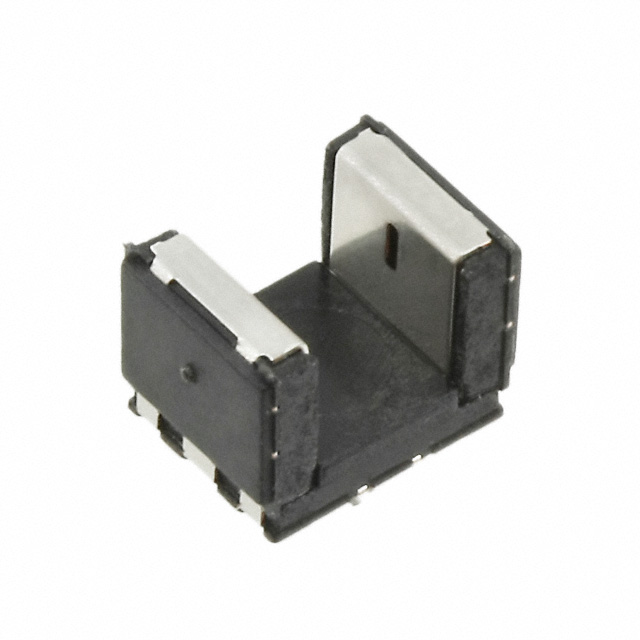

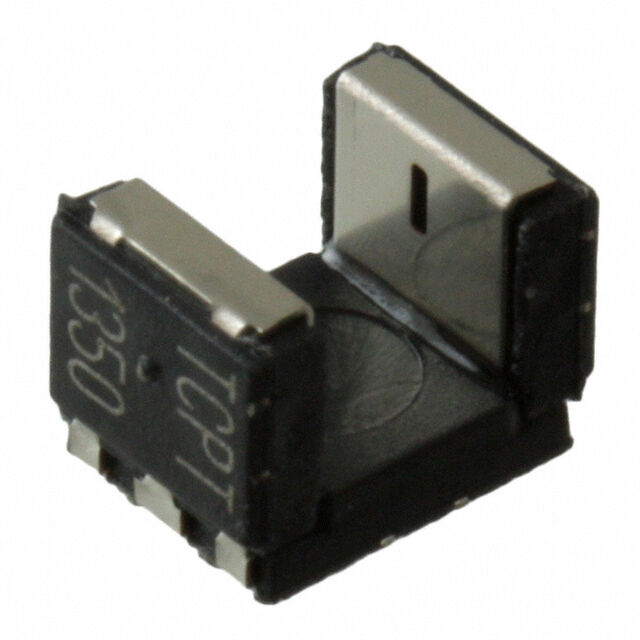

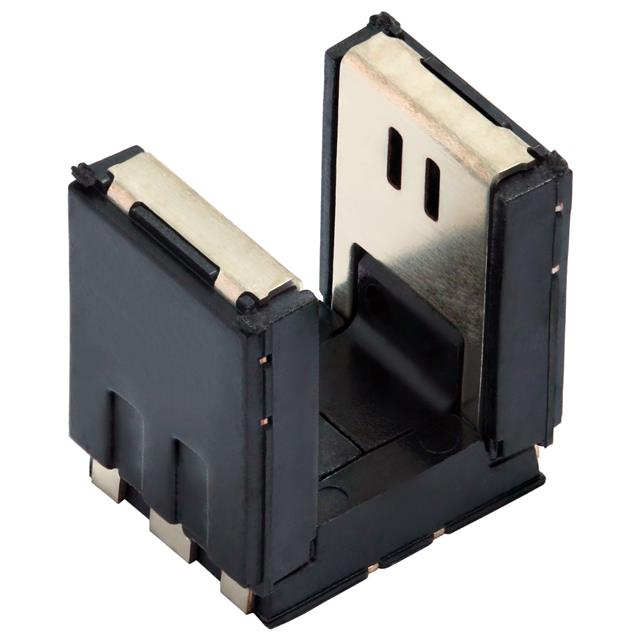

| Part Number | TCPT1300X01 | TCPT1350X01 | TCUT1600X01 | TCST1300 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR OPT SLOT PHOTOTRANS 6SMD | SENSOR OPT SLOT PHOTOTRANS MODUL | SENSOR OPT SLOT PHOTOTRANS MODUL | SENSOR OPT SLOT PHOTOTRANS MODUL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube |
