TCR2LN09,LF

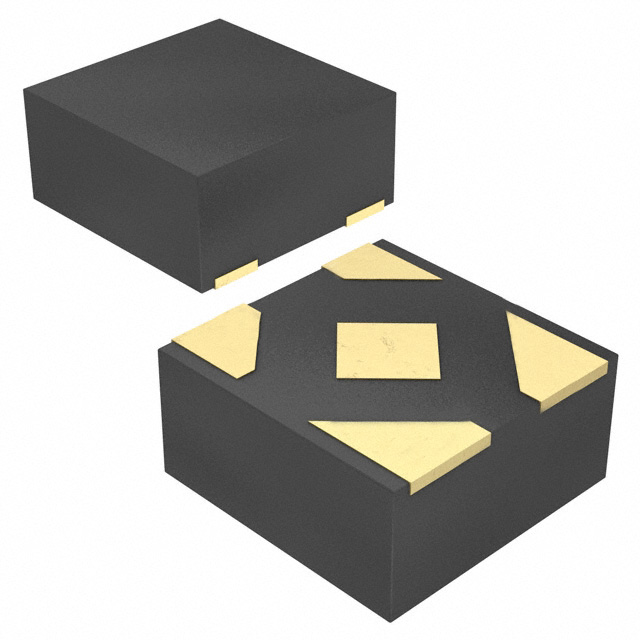

lmages are for reference only.TCR2LN09,LF
IC REG LINEAR 0.9V 200MA 4SDFN
Datasheet4-XFDFN Exposed Pad
10,936 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-SDFN (0.8x0.8)
TCR2LN09,LF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TCR2LN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.46V @ 150mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 2 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFDFN Exposed Pad |
| Supplier Device Package | 4-SDFN (0.8x0.8) |
| Base Product Number | TCR2LN09 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TCR2LN09,LF(SE | TCR2LN095,LF | TCR2LN095,LF(SE | TCR2LE08,LM(CT |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LDO REG VOUT=0.9V I=200MA | IC REG LINEAR 0.95V 200MA 4SDFN | LDO REG VOUT=0.95V I=200MA | IC REG LINEAR 0.8V 200MA ESV |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
