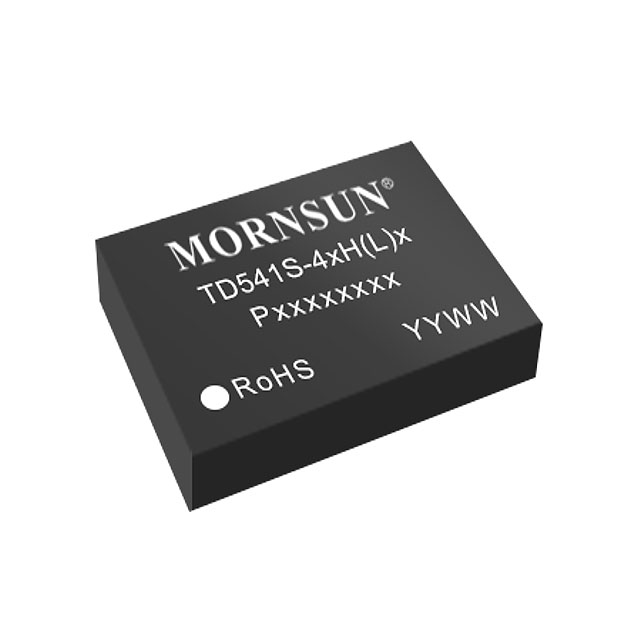

TD541S-42L5
Manufacturer
Mornsun America, LLCDescription
GENERAL PURPOSE DIGITAL ISOLATOR
Datasheet
DatasheetPackage
16-BDFN
In Stock
37,524 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TD541S-42L5
TD541S-42L5
lmages are for reference only.Payment Methods
Delivery Services
SPI Digital Isolator 5000VDC 4 Channel 150Mbps 75kV/µs CMTI 16-BDFN
Quick Inquiry
TD541S-42L5
Specifications
| Category | Isolators - Digital Isolators - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | SPI |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000VDC |
| Common Mode Transient Immunity (Min) | 75kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Pulse Width Distortion (Max) | 4.5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 16-BDFN |
| Supplier Device Package | 16-DFN (13x10) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
