TDA7391PD
lmages are for reference only.TDA7391PD
IC AMP AB MONO 40W POWERSO-20
Datasheet20-SOIC (0.433", 11.00mm Width) Exposed Pad
85,005 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Amplifier IC 1-Channel (Mono) Class AB PowerSO-20
TDA7391PD
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 40W x 1 @ 3.2Ohm |
| Voltage - Supply | 8V ~ 18V |
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | PowerSO-20 |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Base Product Number | TDA7391 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

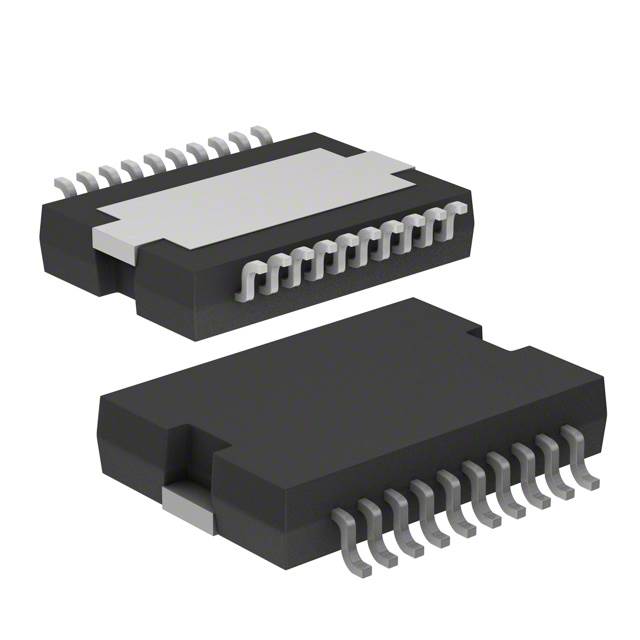

| Part Number | TDA7391PD13TR | TDA7391PDU | TDA7391PDUTR | TDA7391 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP AB MONO 40W POWERSO-20 | IC AMP AB MONO 40W POWERSO-20 | IC AMP AB MONO 40W POWERSO-20 | IC AMP AB MONO 45W 11MULTIWATT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
