TDH35H1R00JE
lmages are for reference only.Payment Methods
Delivery Services

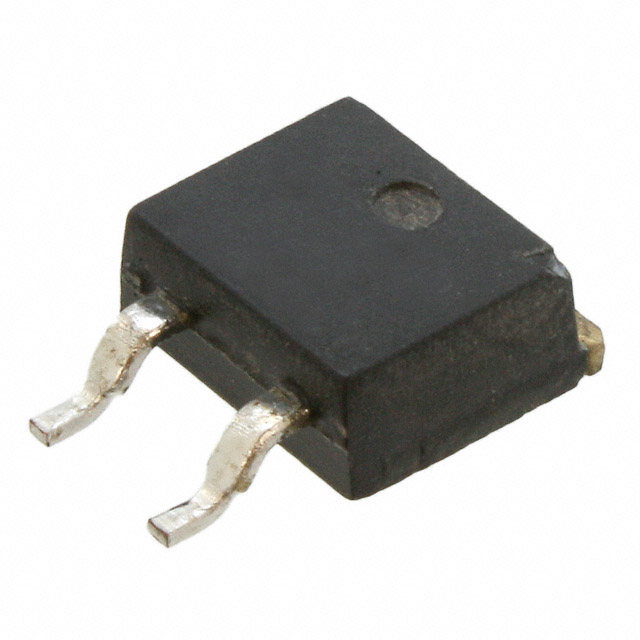

1 Ohms ±5% 35W Chip Resistor TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Moisture Resistant Thick Film
TDH35H1R00JE
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Ohmite |
| Series | TDH35 |
| Packaging | Bulk |
| RoHS Status | |
| Resistance | 1 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 35W |
| Composition | Thick Film |
| Features | Moisture Resistant |
| Temperature Coefficient | ±300ppm/°C |
| Operating Temperature | -55°C ~ 175°C |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | DPAK |
| Ratings | - |
| Size / Dimension | 0.398" L x 0.339" W (10.10mm x 8.60mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

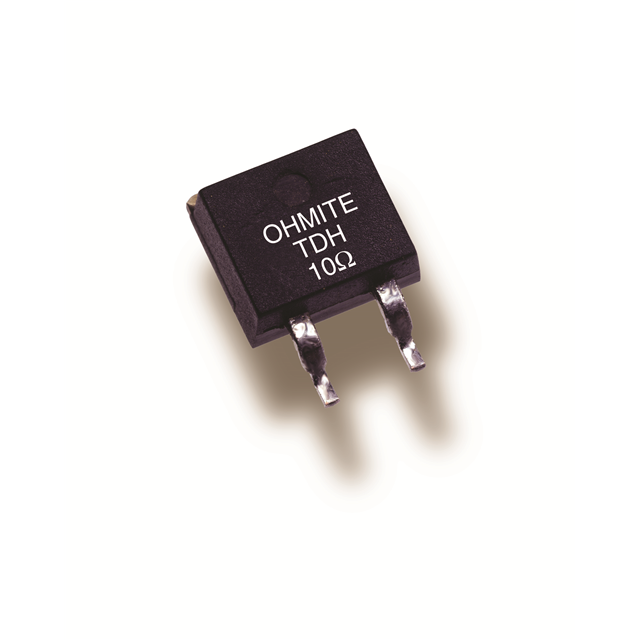

| Part Number | TDH35H10R0JE | TDH35H20R0JE | TDH35H300RJE | TDH35HR100FE |
| Manufacturer | Ohmite | Ohmite | Ohmite | Ohmite |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | RES 10 OHM 35W SMD DPAK HI-TEMP | RES 20 OHM 5% 35W DPAK | RES 300 OHM 5% 35W DPAK | RES 0.1 OHM 1% 35W DPAK |
| Series | Ohmite | Ohmite | Ohmite | Ohmite |
| Packaging | Bulk | Bulk | Bulk | Tube |
