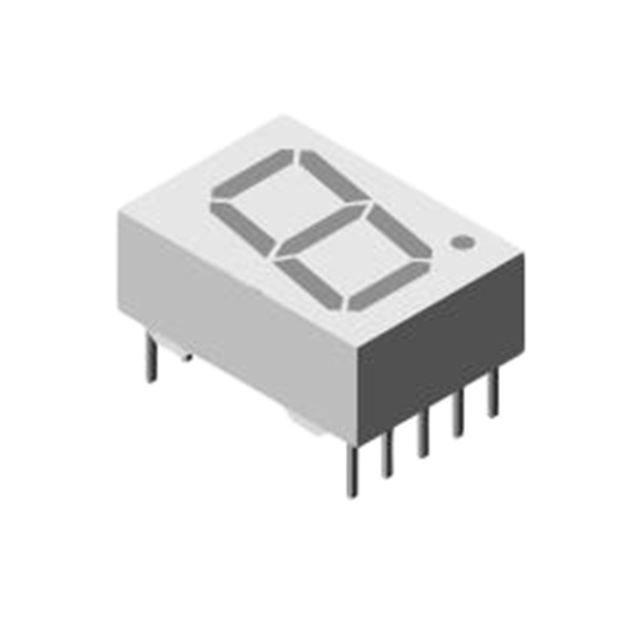

TDSO5160-LM
lmages are for reference only.TDSO5160-LM
DISP 7SEG 0.51" SGL OR-RED 10DIP
Datasheet10-DIP (0.600", 15.24mm)
102,430 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Cathode 2V 20mA 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm) 10-DIP (0.600", 15.24mm)
TDSO5160-LM
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | TDS.51 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm) |
| Digit/Alpha Size | 0.51" (13.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Orange-Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 9mcd |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 550mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Base Product Number | TDSO5160 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

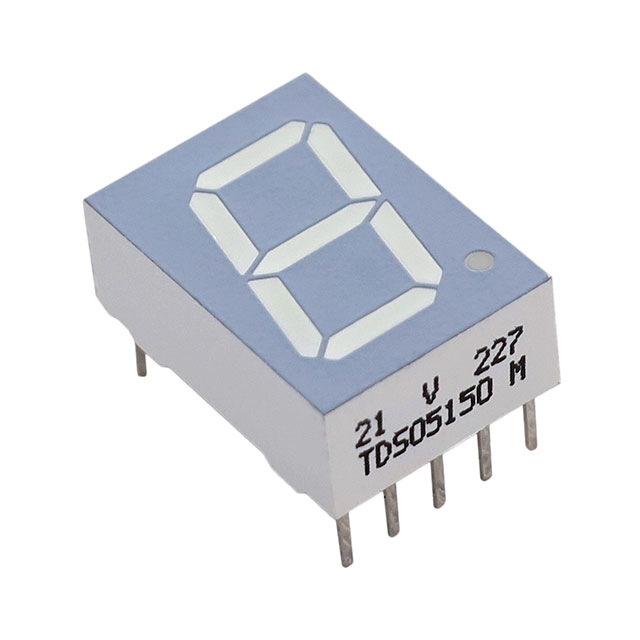

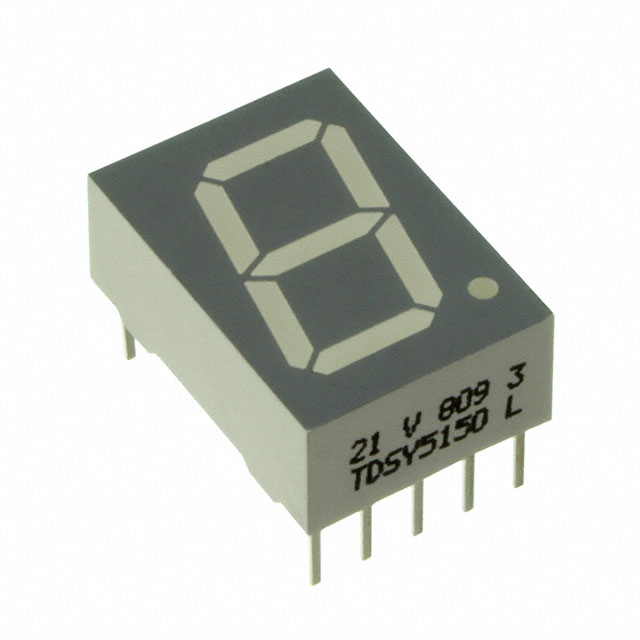

| Part Number | TDSO5160 | TDSO5150 | TDSO5150-LM | TDSO5150-M |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISP 7SEG 0.51" SGL OR-RED 10DIP | DISP 7SEG 0.51" SGL OR-RED 10DIP | DISP 7SEG 0.51" SGL OR-RED 10DIP | DISP 7SEG 0.51" SGL OR-RED 10DIP |
| Series | TDS.51 | TDS.51 | TDS.51 | TDS.51 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
