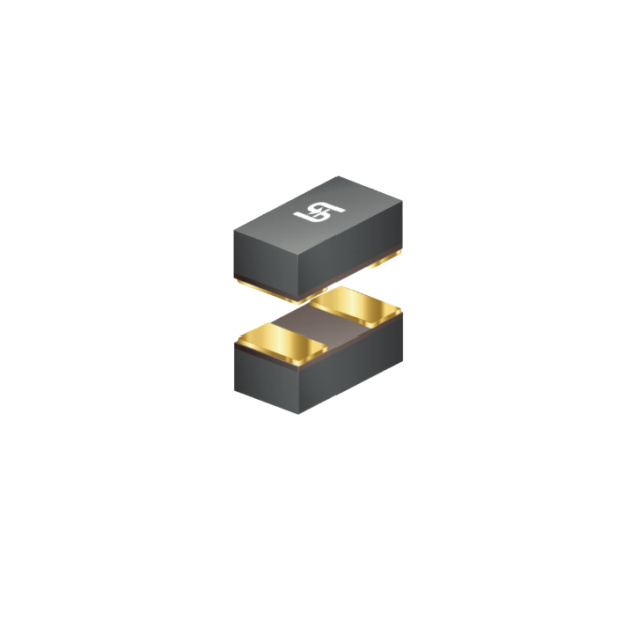

TESDU12V
lmages are for reference only.TESDU12V
0603, 12V, 25W, 12PF, ESD PROTEC
Datasheet0603 (1608 Metric)
65,373 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33V Clamp 5A Ipp Tvs Diode Surface Mount 0603
TESDU12V
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13V |
| Voltage - Clamping (Max) @ Ipp | 33V |
| Current - Peak Pulse (10/1000µs) | 5A |
| Power - Peak Pulse | 25W |
| Power Line Protection | No |
| Applications | USB |
| Capacitance @ Frequency | 12pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Base Product Number | TESDU12 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | TESDU12V RGG | TESDU24V | TESDU24V RGG | TESDU5V0 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 0603, 12V, 25W, 12PF, ESD PROTEC | 0603, 24V, 47W, 10PF, ESD PROTEC | 0603, 24V, 47W, 10PF, ESD PROTEC | 0603, 5V, 75W, 15PF, ESD PROTECT |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
