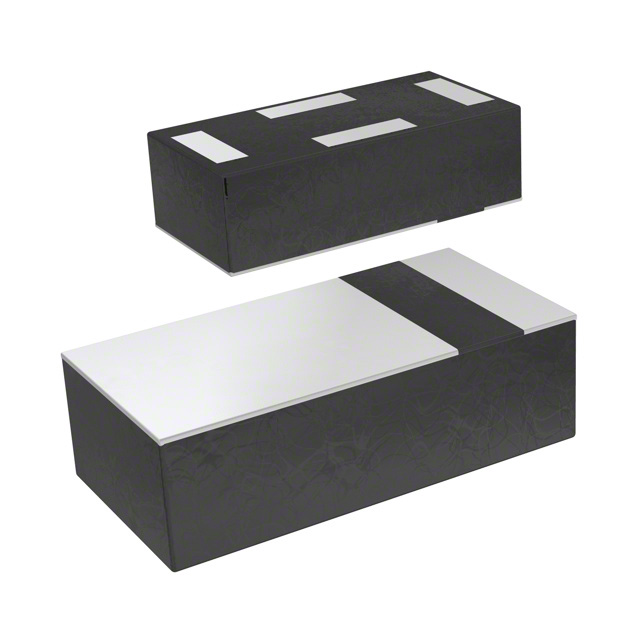

RF DIPLEXER 2.45GHZ/5.45GHZ 0402
Datasheet0402 (1005 Metric)
60,559 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz 0402 (1005 Metric)
TFSD10055950-5001C1
| Category | RF and Wireless - RF Multiplexers - |
| Manufacturer | TDK Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Diplexer |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz |
| Low Band Attenuation (min / max dB) | 20.00dB / 29.00dB |
| High Band Attenuation (min / max dB) | 18.00dB / 26.00dB |
| Return Loss (Low Band / High Band) | 21.0dB / 23.0dB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | TFSD10055950-5001C1 | TFSD10055950-5001C1A | TFSD10055950-5001C1A | TFSD10055950-5102A2 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | RF DIPLEXER 2.45GHZ/5.45GHZ 0402 | THIN-FILM DIPLEXER 2.4/5GHZ 0402 | THIN-FILM DIPLEXER 2.4/5GHZ 0402 | RF DIPLEXER 2.45GHZ/5.45GHZ 0402 |
| Series | - | TFS | TFS | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
