TGL41-200A

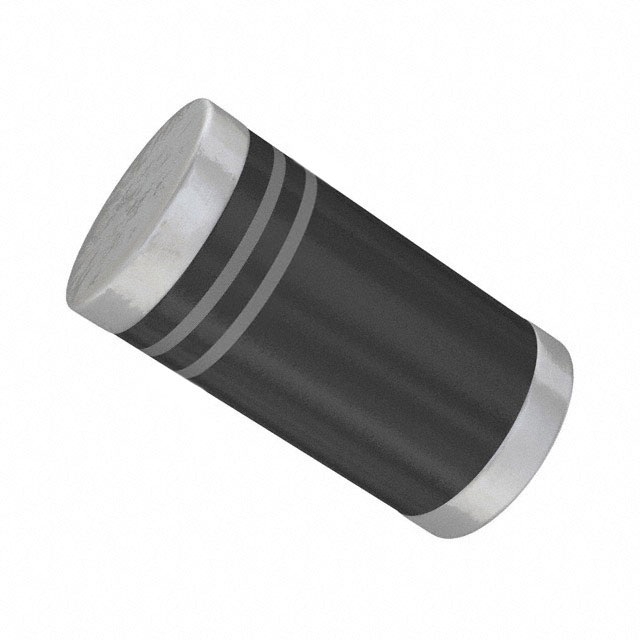

lmages are for reference only.TGL41-200A
TVS DIODE 171VWM 274VC DO-213AB
DatasheetDO-213AB, MELF
80,406 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
274V Clamp 1.5A Ipp Tvs Diode Surface Mount DO-213AB (MELF)
TGL41-200A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 171V |
| Voltage - Breakdown (Min) | 190V |
| Voltage - Clamping (Max) @ Ipp | 274V |
| Current - Peak Pulse (10/1000µs) | 1.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB (MELF) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TGL41-200-E3/96 | TGL41-200-E3/97 | TGL41-200A-E3/96 | TGL41-200A-E3/97 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 162VWM 287VC GL41 | TVS DIODE 162VWM 287VC GL41 | TVS DIODE 171VWM 274VC GL41 | TVS DIODE 171VWM 274VC GL41 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
