THA502M020AA0C

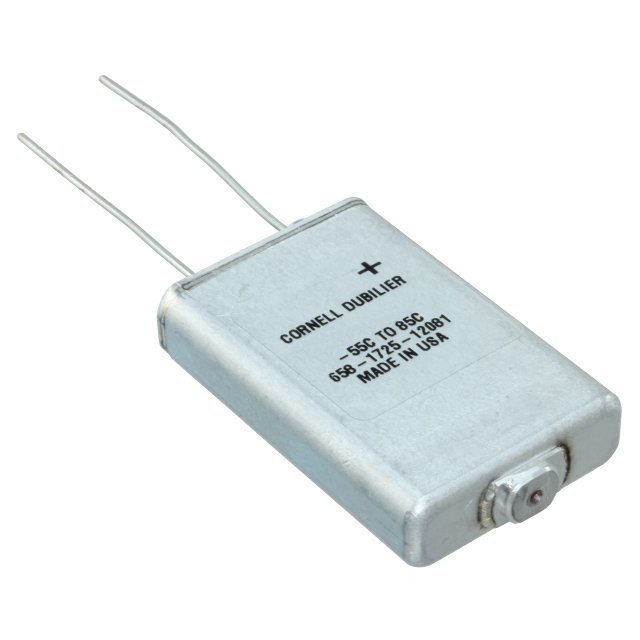

lmages are for reference only.THA502M020AA0C
CAP ALUM 5000UF 20% 20V FLTPCK
DatasheetFlatPack
14,209 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5000 µF 20 V Aluminum Electrolytic Capacitors FlatPack 120mOhm @ 120Hz 5000 Hrs @ 85°C
THA502M020AA0C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | THA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.09 A @ 20 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.433" L x 0.953" W (36.40mm x 24.20mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
 |
 |
| Part Number | THA502M020AA1C | THA522M040AD0C | THA522M040AD1C | THA561M150AC0C |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 5000UF 20% 20V FLTPCK | CAP ALUM 5200UF 20% 40V FLTPCK | CAP ALUM 5200UF 20% 40V FLTPCK | CAP ALUM 560UF 20% 150V FLTPCK |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
