THMA040HS-100MN
lmages are for reference only.THMA040HS-100MN
IND 10UH 384MOHM 1.2A
DatasheetNonstandard
30,222 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Unshielded Wirewound Inductor 1.2 A 384mOhm Max Nonstandard
THMA040HS-100MN
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | THMA040HS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 1.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 384mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|

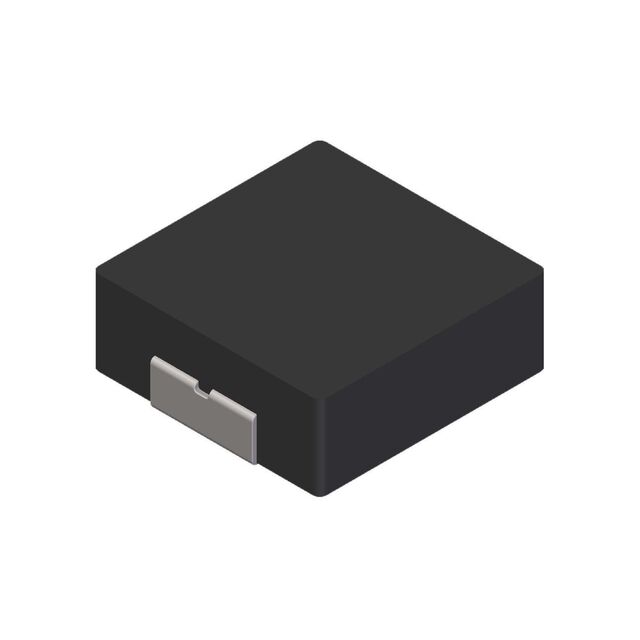

| Part Number | THMA040HS-5R6MN | THMA040HS-6R8MN | THMA0301S-100MN | THMA0301S-4R7MN |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IND 5.6UH 300MOHM 1.6A | IND 6.8UH 312MOHM 1.5A | IND 10UH 420MOHM 1.1A | IND 4.7UH 238MOHM 1.3A |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
