THMC0503SP-1R2MG-D

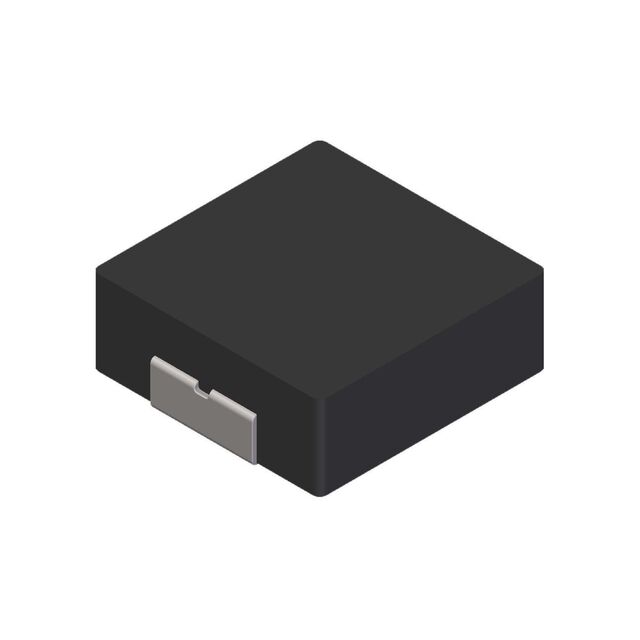

lmages are for reference only.THMC0503SP-1R2MG-D
IND 1.2UH 8.4MOHM 12.7A
DatasheetNonstandard
16,030 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 µH Unshielded Molded Inductor 12.7 A 8.4mOhm Max Nonstandard
THMC0503SP-1R2MG-D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | THMC0503SP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12.7 A |
| Current - Saturation (Isat) | 13.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | THMC0503SP-100MG-D | THMC0503SP-150MG-D | THMC0503SP-1R0MG-D | THMC0503SP-1R5MG-D |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IND 10UH 78MOHM 4.5A | IND 15UH 118MOHM 3A | IND 1UH 6.7MOHM 13A | IND 1.5UH 10MOHM 12.5A |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
