THN 20-3611UIR

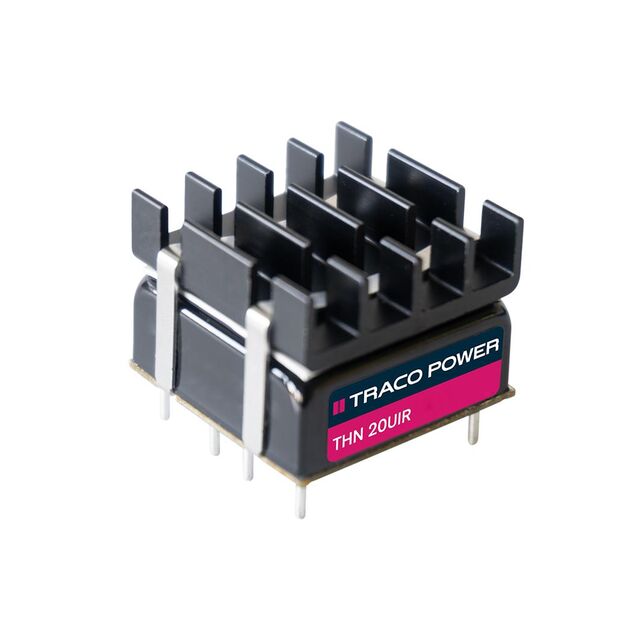

lmages are for reference only.THN 20-3611UIR
20 WATT RAILWAY DC/DC CONVERTER
Datasheet7-DIP Module, 6 Leads
16,774 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5.1V 4A 9V - 75V Input
THN 20-3611UIR
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | THN 20UIR (20W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Heat Sink, Remote On/Off |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 6 Leads |
| Size / Dimension | 1.00" L x 1.00" W x 0.74" H (25.4mm x 25.4mm x 18.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | THN 20-3612UIR | THN 20-3613UIR | THN 20-3615UIR | THN 20-3622UIR |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 20 WATT RAILWAY DC/DC CONVERTER | 20 WATT RAILWAY DC/DC CONVERTER | 20 WATT RAILWAY DC/DC CONVERTER | 20 WATT RAILWAY DC/DC CONVERTER |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
