TK12E80W,S1X
lmages are for reference only.TK12E80W,S1X
MOSFET N-CH 800V 11.5A TO220
DatasheetTO-220-3
39,251 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 800 V 11.5A (Ta) 165W (Tc) Through Hole TO-220
TK12E80W,S1X
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | DTMOSIV |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 5.8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 570µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 300 V |
| FET Feature | - |
| Power Dissipation (Max) | 165W (Tc) |
| Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
| Base Product Number | TK12E80 |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TK040N60Z1,S1F | TK040N65Z,S1F | TK040Z65Z,S1F | TK042N65Z5,S1F(S |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |

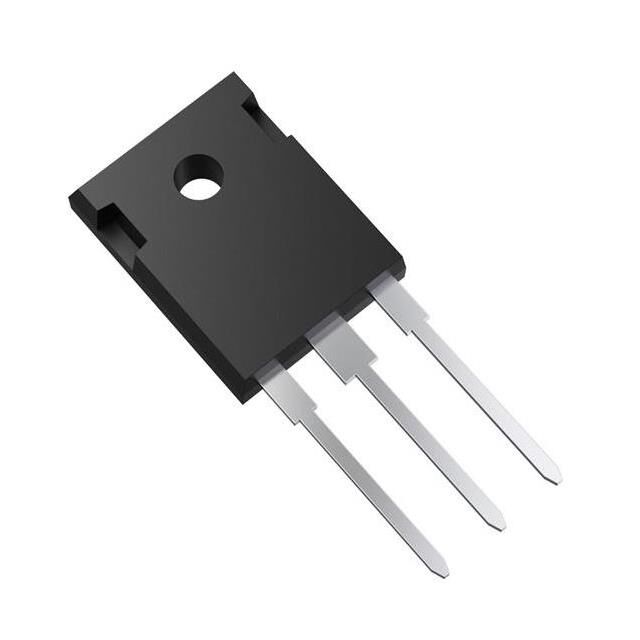

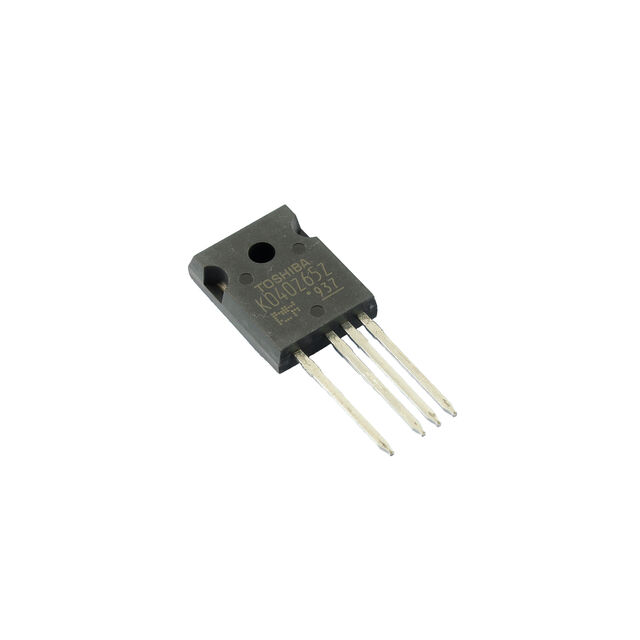

| Description | 600V DTMOS6 TO-247 40MOHM | MOSFET N-CH 650V 57A TO247 | MOSFET N-CH 650V 57A TO247-4L | 650V DTMOS6 HSD 42MOHM TO-247 |
| Series | DTMOSVI | - | DTMOSVI | DTMOSVI |
| Packaging | Tube | Tube | Tube | Tube |
