TK42E12N1,S1X
lmages are for reference only.TK42E12N1,S1X
MOSFET N CH 120V 88A TO-220
DatasheetTO-220-3
48,319 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 120 V 88A (Tc) 140W (Tc) Through Hole TO-220
TK42E12N1,S1X
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSVIII-H |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 120 V |
| Current - Continuous Drain (Id) @ 25°C | 88A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9.4mOhm @ 21A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3100 pF @ 60 V |
| FET Feature | - |
| Power Dissipation (Max) | 140W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
| Base Product Number | TK42E12 |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

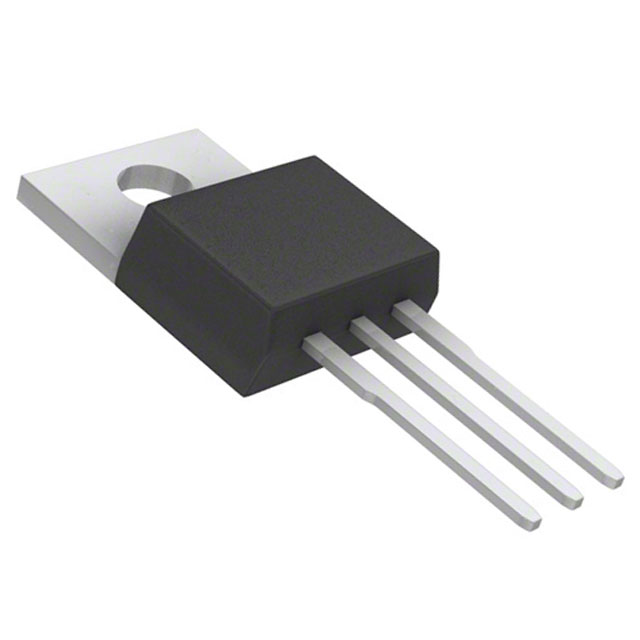

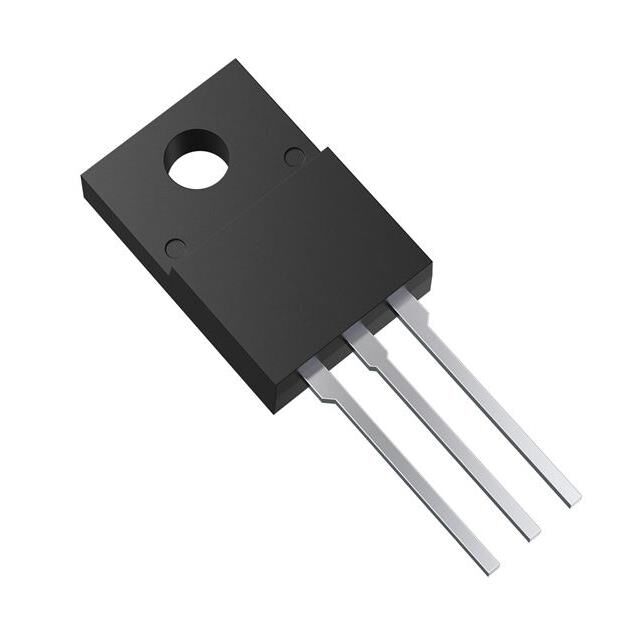

| Part Number | TK40A06N1,S4X | TK40A10N1,S4X | TK40E06N1,S1X | TK40E10K3,S1X(S |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | MOSFET N-CH 60V 40A TO220SIS | MOSFET N-CH 100V 40A TO220SIS | MOSFET N-CH 60V 40A TO220 | MOSFET N-CH 100V 40A TO220-3 |
| Series | U-MOSVIII-H | U-MOSVIII-H | U-MOSVIII-H | U-MOSIV |
| Packaging | Tube | Tube | Tube | Tube |
