TK49N65W5,S1F

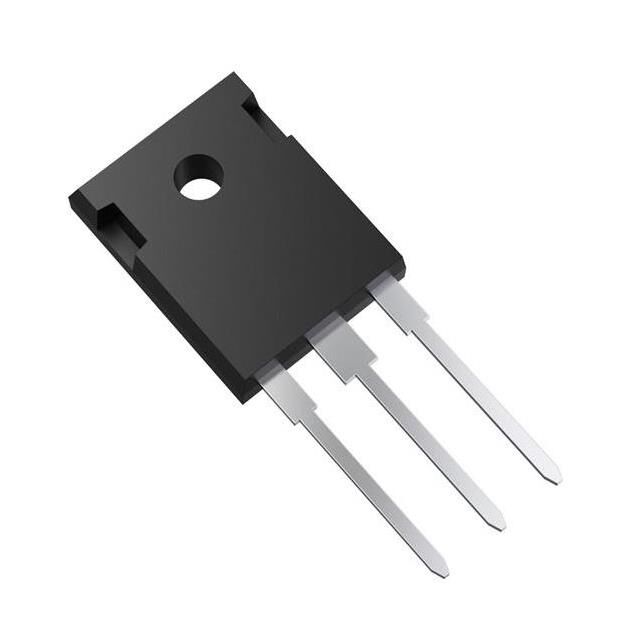

lmages are for reference only.TK49N65W5,S1F
X35 PB-F POWER MOSFET TRANSISTOR
DatasheetTO-247-3
29,891 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 49.2A (Ta) 400W (Tc) Through Hole TO-247
TK49N65W5,S1F
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 49.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 57mOhm @ 24.6A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 2.5mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6500 pF @ 300 V |
| FET Feature | - |
| Power Dissipation (Max) | 400W (Tc) |
| Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Package / Case | TO-247-3 |
| Base Product Number | TK49N65 |
| Gate Charge (Qg) (Max) @ Vgs | 185 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TK49N65W,S1F | TK40A06N1,S4X | TK40A10N1,S4X | TK40E06N1,S1X |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PB-F POWER MOSFET TRANSISTOR TO2 | MOSFET N-CH 60V 40A TO220SIS | MOSFET N-CH 100V 40A TO220SIS | MOSFET N-CH 60V 40A TO220 |
| Series | - | U-MOSVIII-H | U-MOSVIII-H | U-MOSVIII-H |
| Packaging | Tube | Tube | Tube | Tube |
