TK72A08N1,S4X
lmages are for reference only.TK72A08N1,S4X
MOSFET N-CH 75V 80A TO220SIS
DatasheetTO-220-3 Full Pack
17,627 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 75 V 80A (Ta) 45W (Tc) Through Hole TO-220SIS
TK72A08N1,S4X
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSVIII-H |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8200 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 45W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220SIS |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | TK72A08 |
| Gate Charge (Qg) (Max) @ Vgs | 175 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | .jpg "TK70D06J1(Q)") |
 |
 |
 |
| Part Number | TK70D06J1(Q) | TK72A12N1,S4X | TK72E08N1,S1X | TK72E12N1,S1X |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

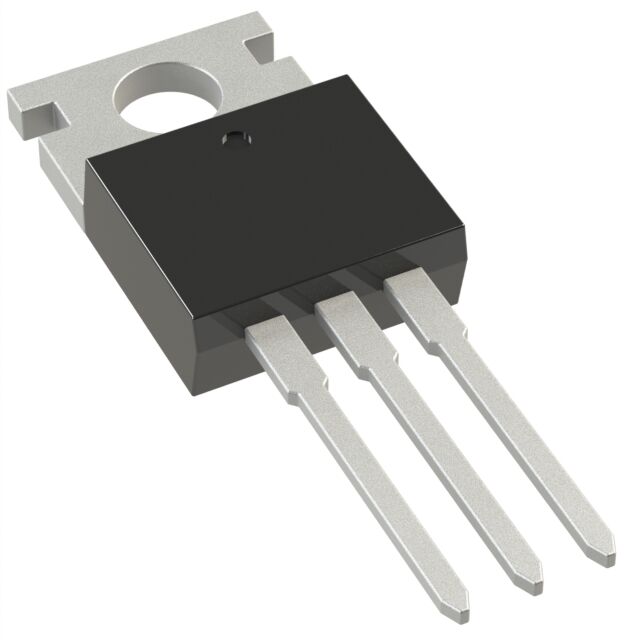

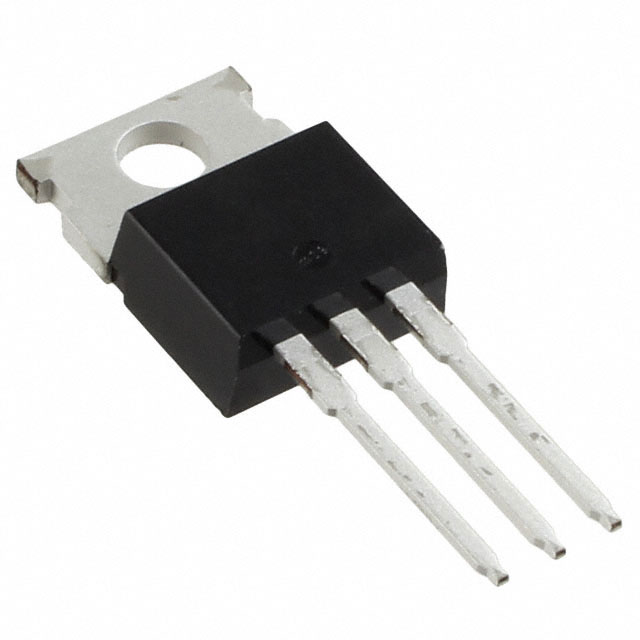

| Description | MOSFET N-CH 60V 70A TO220 | MOSFET N-CH 120V 72A TO220SIS | MOSFET N-CH 80V 72A TO220 | MOSFET N CH 120V 72A TO-220 |
| Series | - | U-MOSVIII-H | U-MOSVIII-H | U-MOSVIII-H |
| Packaging | Tube | Tube | Tube | Tube |
