TK8A65W,S5X
lmages are for reference only.TK8A65W,S5X
MOSFET N-CH 650V 7.8A TO220SIS
DatasheetTO-220-3 Full Pack
57,755 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 7.8A (Ta) 30W (Tc) Through Hole TO-220SIS
TK8A65W,S5X
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | DTMOSIV |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 7.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 650mOhm @ 3.9A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 300µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 570 pF @ 300 V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220SIS |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | TK8A65 |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 10 V |
| Grade | - |
| Qualification | - |

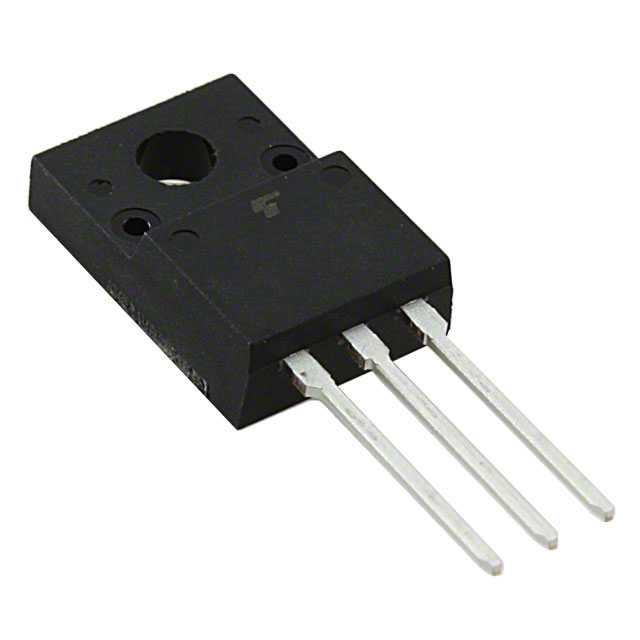

| Product Attribute | .jpg "TK8A60DA(STA4,Q,M)") |
 |
 |
|

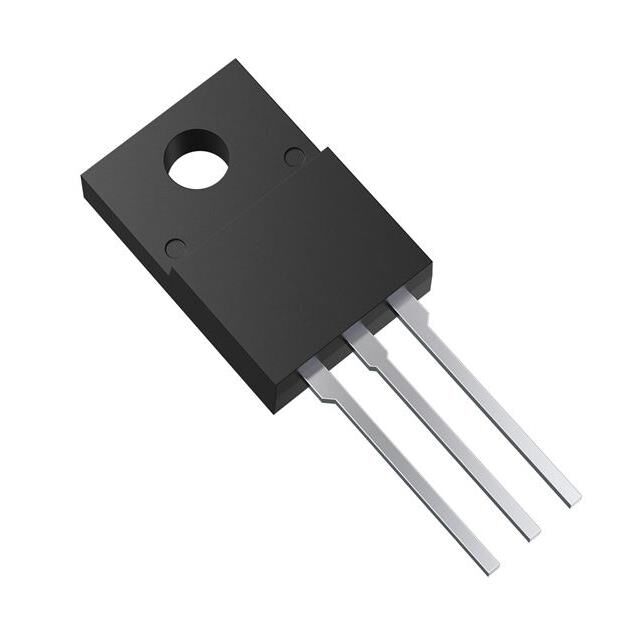

| Part Number | TK8A60DA(STA4,Q,M) | TK8A60W,S4VX | TK8A60W5,S5VX | TK8A65D(STA4,Q,M) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 600V 7.5A TO220SIS | MOSFET N-CH 600V 8A TO220SIS | MOSFET N-CH 600V 8A TO220SIS | MOSFET N-CH 650V 8A TO220SIS |
| Series | π-MOSVII | DTMOSIV | DTMOSIV | π-MOSVII |
| Packaging | Tube | Tube | Tube | Bulk |
