TL100-A2PV
lmages are for reference only.TL100-A2PV
CURRENT SENSOR 100A 1 CHANNEL HA
DatasheetModule, Single Pass Through
50,318 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
TL100-A2PV
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 6.25mV/A |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.1% |
| Accuracy | ±0.5% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 300ns |
| Current - Supply (Max) | 14mA |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

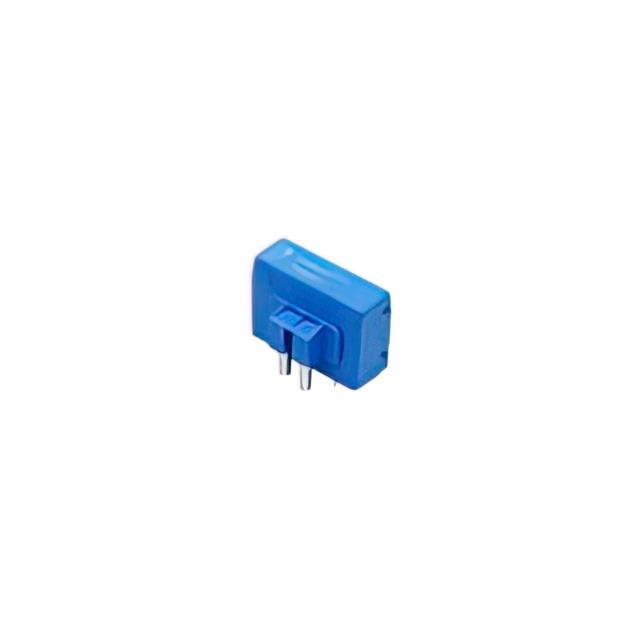

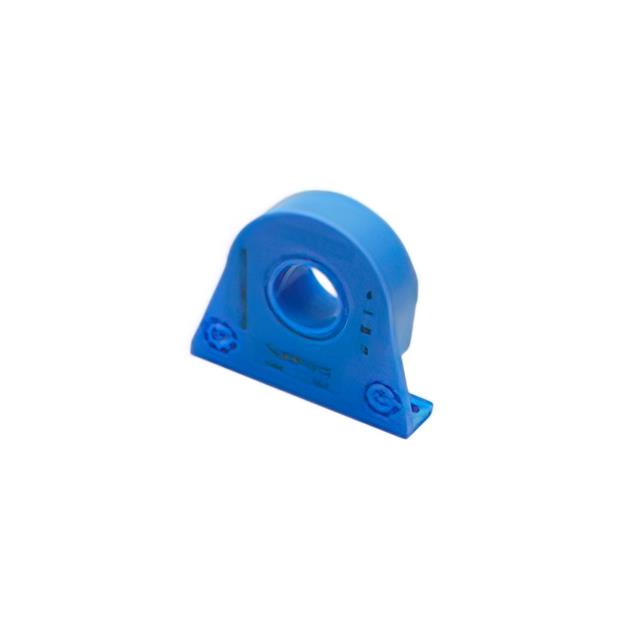

| Part Number | TL100-A2TPV | TL100-D1C | TL100-D2C | TL100P-D1C |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CURRENT SENSOR 100A 1 CHANNEL HA | CURRENT SENSOR 100A 1 CHANNEL HA | CURRENT SENSOR 100A 1 CHANNEL HA | CURRENT SENSOR 100A 1 CHANNEL HA |
| Series | ||||
| Packaging | TL1xx-A2TPV | TLx00-D1C | TLx00-D2C | TLx00P-D1C |
