TLE4276GVATMA2
lmages are for reference only.TLE4276GVATMA2
IC REG LIN POS ADJ 400MA TO263-5
DatasheetTO-263-6, D2PAK (5 Leads + Tab), TO-263BA
36,679 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 400mA PG-TO263-5-1
TLE4276GVATMA2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Infineon Technologies |
| Series | OPTIREG™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 200 µA |
| PSRR | 54dB (100Hz) |
| Control Features | Inhibit |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | PG-TO263-5-1 |
| Base Product Number | TLE4276 |
| Current - Supply (Max) | 25 mA |
| Product Attribute |  |
 |
 |
|

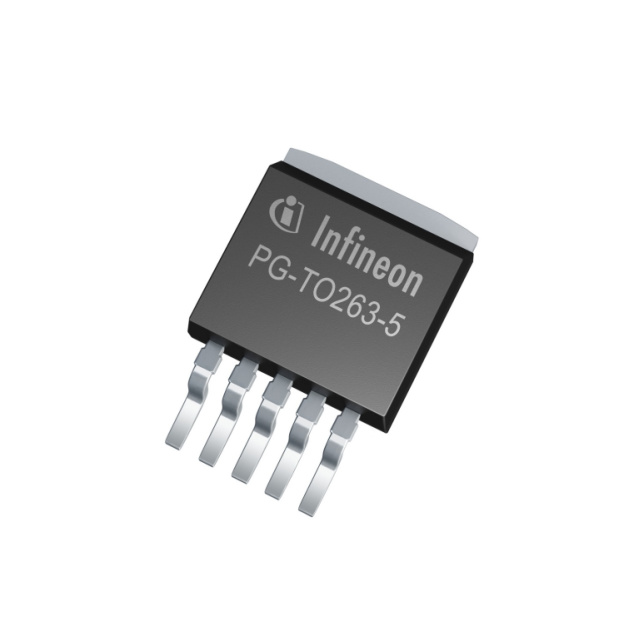

| Part Number | TLE4276GVATMA1 | TLE4276GVATMA3 | TLE4276GVATMA4 | TLE4276GVATMA4 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG LIN POS ADJ 400MA TO220-5 | IC REG LIN POS ADJ 400MA TO263-5 | TLE4276G - OPTIREG LINEAR LOW DR | IC REG LIN POS ADJ 400MA TO220-5 |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) |
