TLE49645MXTSA1
lmages are for reference only.TLE49645MXTSA1
MAG SWITCH UNIPOLAR SOT23-3
DatasheetTO-236-3, SC-59, SOT-23-3
42,273 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Switch Unipolar Switch Open Drain Hall Effect PG-SOT23-3-15
TLE49645MXTSA1
| Category | Sensors, Transducers - Magnetic Sensors - Switches Solid State |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Unipolar Switch |
| Technology | Hall Effect |
| Polarization | South Pole |
| Sensing Range | 10.4mT Trip, 2.7mT Release |
| Test Condition | 25°C |
| Voltage - Supply | 3V ~ 32V |
| Current - Supply (Max) | 2.5mA |
| Current - Output (Max) | 25mA |
| Output Type | Open Drain |
| Features | Temperature Compensated |
| Operating Temperature | -40°C ~ 170°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT23-3-15 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | TLE49645 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

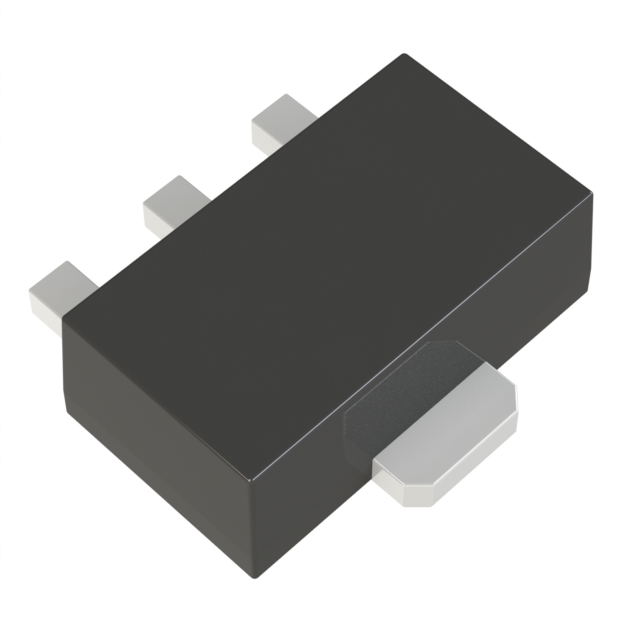

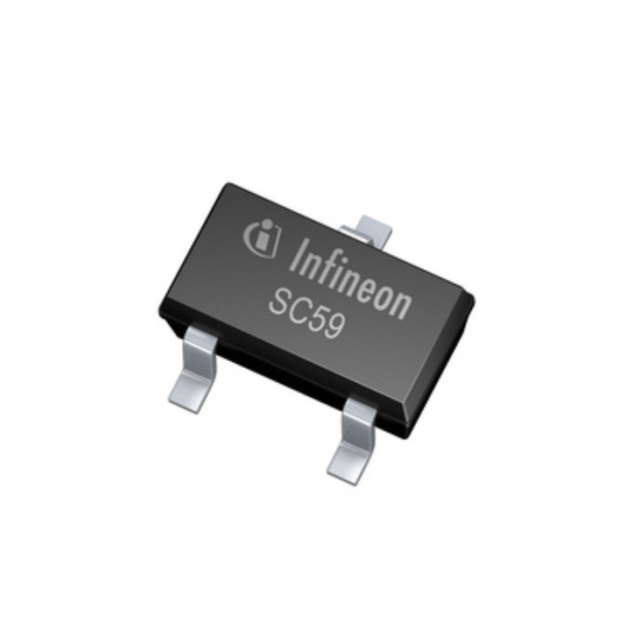

| Part Number | TLE49645MXTMA1 | TLE4905GNTSA1 | TLE4905GT | TLE4905LE6433HAXA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MAG SWITCH IC HALL EFF SOT23-3 | MAGNETIC SWITCH UNIPOLAR SOT89-3 | MAGNETIC SWITCH UNIPOLAR SOT89-3 | MAGNETIC SWITCH UNIPOLAR SSO-3-2 |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Cut Tape (CT)-->Tape & Box (TB) |
