TLE4972AE35S5XUMA1
lmages are for reference only.TLE4972AE35S5XUMA1
SENSOR CUR HALL 2000A 6PWRVDFN
Datasheet6-PowerVDFN
12,459 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 2000A 1 Channel Hall Effect, Differential 6-PowerVDFN
TLE4972AE35S5XUMA1
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Differential |
| Current - Sensing | 2000A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 62mV/mT |
| Frequency | 210kHz |
| Linearity | - |
| Accuracy | - |
| Voltage - Supply | 3.1V ~ 3.5V |
| Response Time | 700ns |
| Current - Supply (Max) | 25mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-PowerVDFN |
| Supplier Device Package | PG-VSON-6-4 |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

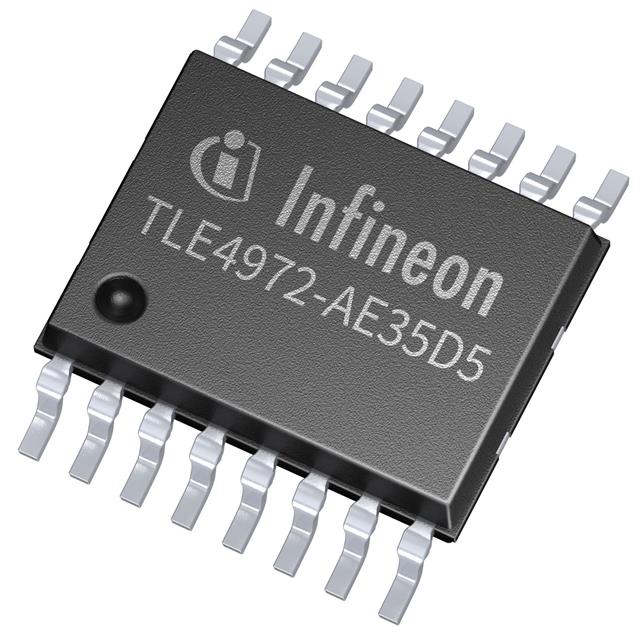

| Part Number | TLE4972AE35D5XUMA1 | TLE4971A025N5E0001XUMA1 | TLE4971A025N5UE0001XUMA1 | TLE4971A025T5E0001XUMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CUR HALL 2000A 16TSSOP | SPEED & CURRENT SENSORS PG-TISON | SPEED & CURRENT SENSORS PG-TISON | SPEED & CURRENT SENSORS |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
