Product CatalogPart Number
TLE5046ICPWM2R100HALA1
Manufacturer
Infineon TechnologiesDescription
SPEED SENSORS
Datasheet
DatasheetPackage
2-SIP, SSO-2-1
In Stock
40,434 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TLE5046ICPWM2R100HALA1
TLE5046ICPWM2R100HALA1
lmages are for reference only.Payment Methods
Delivery Services
Magnetoresistive Sensor X, Y, Z Axis PG-SSO-2-1
Quick Inquiry
TLE5046ICPWM2R100HALA1
Specifications
| Category | Sensors, Transducers - Magnetic Sensors - Linear-Compass ICs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Technology | Magnetoresistive |
| Axis | X, Y, Z |
| Output Type | PWM |
| Sensing Range | 250mT (X,Y), 500mT (Z) |
| Voltage - Supply | 5.2V ~ 20V |
| Current - Supply (Max) | 16.1mA |
| Current - Output (Max) | - |
| Resolution | - |
| Bandwidth | - |
| Operating Temperature | -40°C ~ 190°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Features | - |
| Supplier Device Package | PG-SSO-2-1 |
| Mounting Type | Through Hole |
| Package / Case | 2-SIP, SSO-2-1 |
| Base Product Number | TLE5046 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

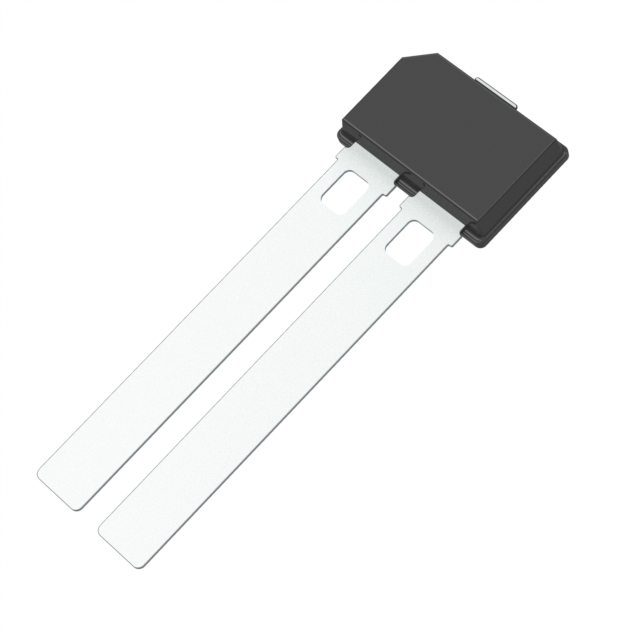

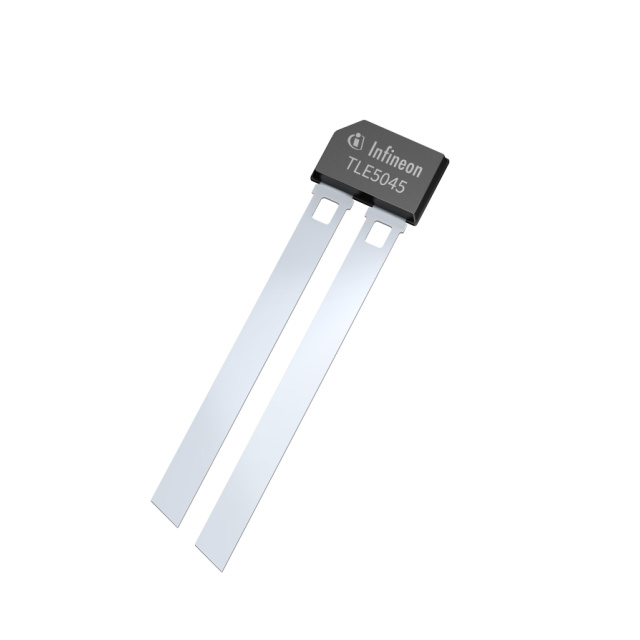

| Part Number | TLE5046ICPWM2ER050HALA1 | TLE5046ICPWM2ER100HALA1 | TLE5046ICPWM2ER100HALA1 | TLE5046ICPWM2R050HALA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SPEED SENSORS | TLE504HiEGWheSpeSenswidirectidet | SPEED SENSORS | SPEED SENSORS |
| Series | - | - | - | - |
| Packaging | Tape & Box (TB) | Bulk | Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
Customers Also Interested in
Recommended Products
TLE5027CE6747HAMA1
Infineon Technologies
TLE5027CE6747HAMA4
Infineon Technologies
TLE5027CIE6747HAMA1
Infineon Technologies
TLE5027CXAAD47AGXAMA1
Infineon Technologies
TLE5027CXAAD47AIHAMA1
Infineon Technologies
TLE5028CXAAD28HAMA1
Infineon Technologies
TLE50451ICR075XAMA1
Infineon Technologies
TLE50452IC100XTMA1
Infineon Technologies
TLE50452IC50XTMA1
Infineon Technologies

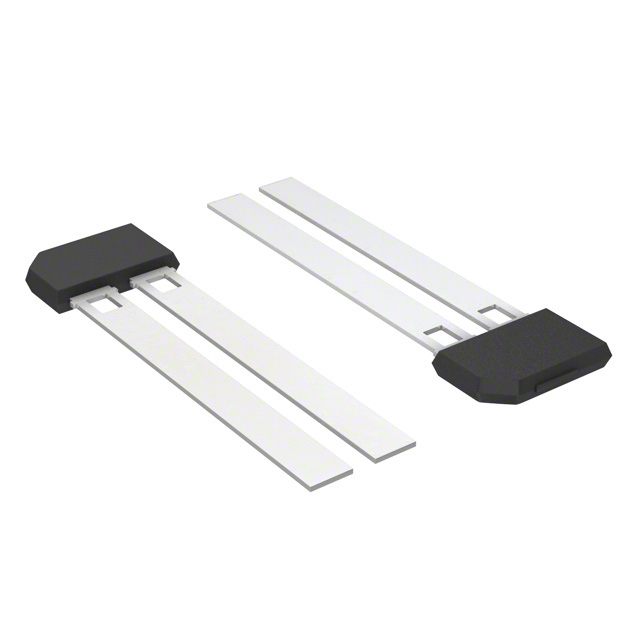

TLE5045ICIJGR050HALA1
