TLMB1100-GS08
lmages are for reference only.TLMB1100-GS08
LED BLUE 0603 SMD
Datasheet0603 (1608 Metric)
43,844 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Blue 466nm LED Indication - Discrete 3.9V 0603 (1608 Metric)
TLMB1100-GS08
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Blue |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 5mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 3.9V |
| Current - Test | 10mA |
| Viewing Angle | 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 466nm |
| Wavelength - Peak | 428nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.65mm |
| Base Product Number | TLMB1100 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|

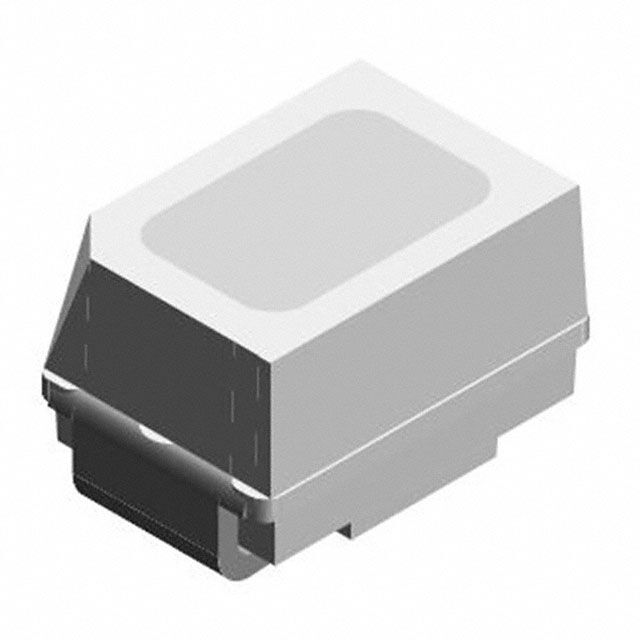

| Part Number | TLMB2100-GS08 | TLMB3100-GS08 | TLMB3101-GS08 | TLMB3104-GS08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED BLUE CLEAR SMD MINILED SMD | LED BLUE CLEAR 2PLCC SMD | LED BLUE CLEAR 2PLCC SMD | LED BLUE CLEAR 2PLCC SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
