TLP104(E)
lmages are for reference only.TLP104(E)
OPTOISO 3.75KV OPEN COLL SO6-5
Datasheet6-SOIC (0.179", 4.55mm Width), 5 Leads
54,783 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 1Mbps Open Collector 3750Vrms 1 Channel 15kV/µs CMTI 6-SO, 5 Lead
TLP104(E)
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 8 mA |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 550ns, 400ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.61V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 4.5V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
| Base Product Number | TLP104 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|

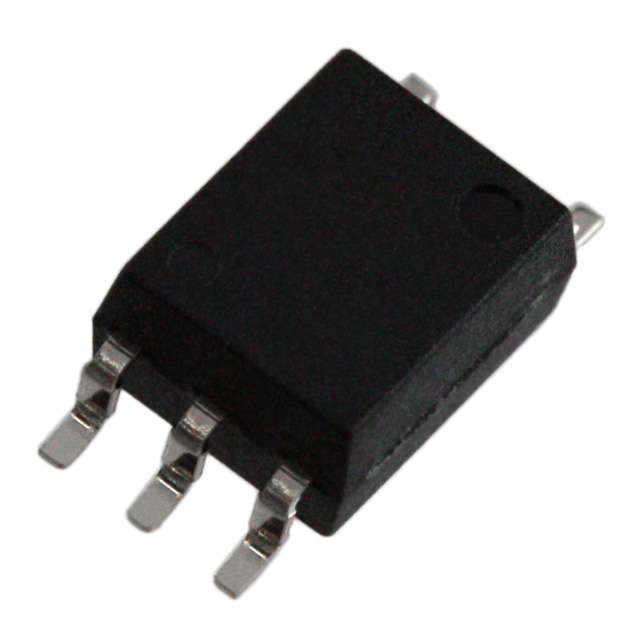

.jpg "TLP104(TPR,E)") |
| Part Number | TLP104(E) | TLP104(TPL,E | TLP104(TPL,E | TLP104(TPR,E) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 3.75KV OPEN COLL SO6-5 | OPTOISO 3.75KV OPEN COLL SO6-5 | OPTOISO 3.75KV OPEN COLL SO6-5 | OPTOISO 3.75KV OPEN COLL SO6-5 |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

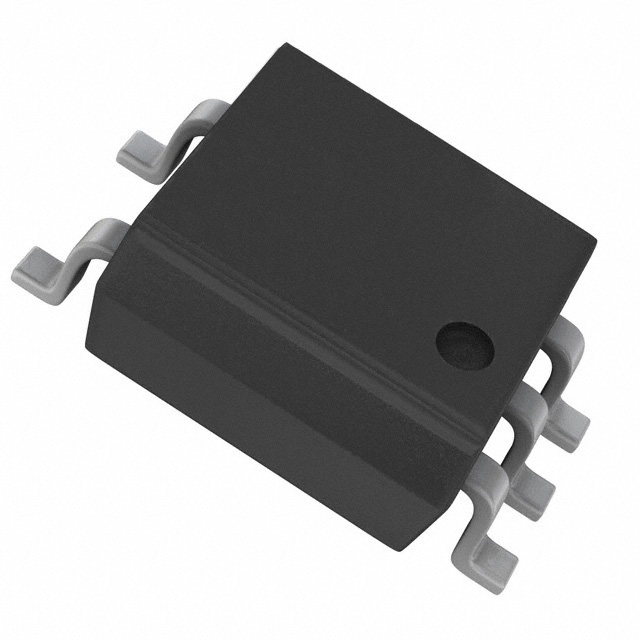

.jpg "TLP105(F)")
