.jpg "TLP227GA-2(TP1,F)")
TLP227GA-2(TP1,F)
lmages are for reference only.TLP227GA-2(TP1,F)
SSR RELAY SPST-NO 120MA 0-400V
Datasheet8-SMD, Gull Wing
33,838 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) x 2 8-SMD, Gull Wing
TLP227GA-2(TP1,F)
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP227GA-2 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) x 2 |
| Output Type | AC, DC |
| Voltage - Input | 1.15VDC |
| Voltage - Load | 0 V ~ 400 V |
| Load Current | 120 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Approval Agency | CSA, cUL, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | TLP227 |
| On-State Resistance (Max) | 35 Ohms |

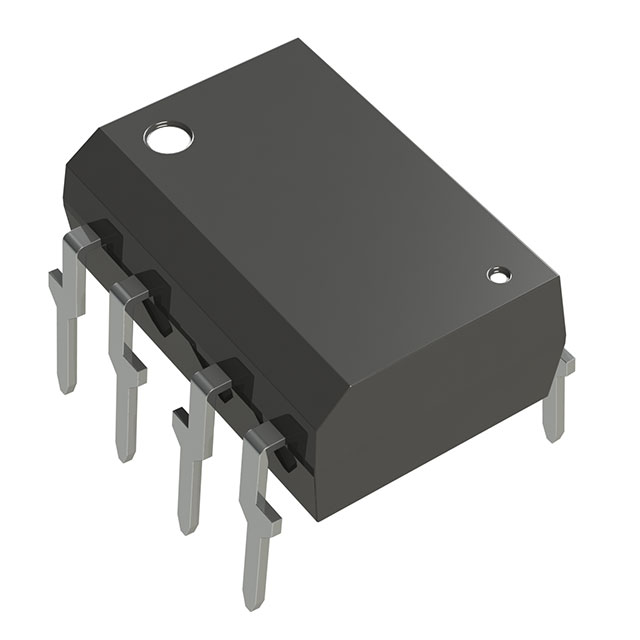

| Product Attribute | .jpg "TLP227GA-2(F)") |
.jpg "TLP227G(F)") |

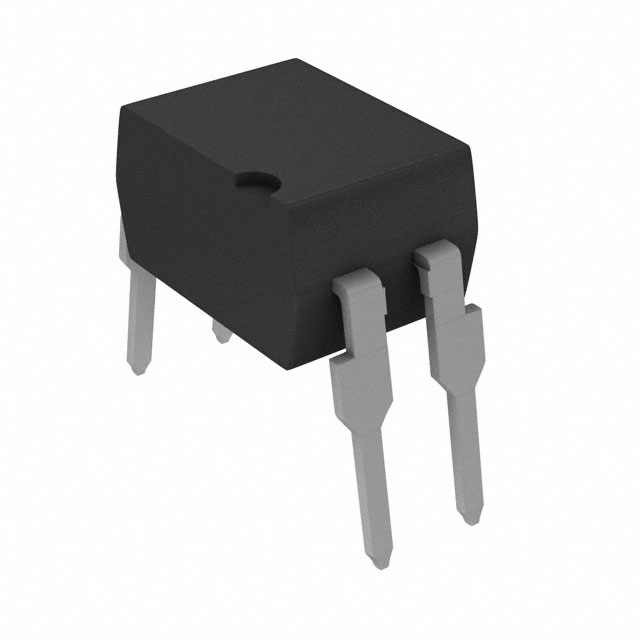

.jpg "TLP227G(N,F)") |
.jpg "TLP227G-2(F)") |
| Part Number | TLP227GA-2(F) | TLP227G(F) | TLP227G(N,F) | TLP227G-2(F) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SSR RELAY SPST-NO 120MA 0-400V | SSR RELAY SPST-NO 120MA 0-350V | SSR RELAY SPST-NO 120MA 0-350V | SSR RELAY SPST-NO 120MA 0-350V |
| Series | TLP227GA-2 | TLP227G | TLP227G | TLP227G-2 |
| Packaging | Tube | Tube | Tube | Tube |
Recommended Products
.jpg "TLP220A(F)")
.jpg "TLP220D(F)")
.jpg "TLP220G(F)")
.jpg "TLP220GA(F)")
.jpg "TLP220J(F)")
.jpg "TLP222A-2(F)")

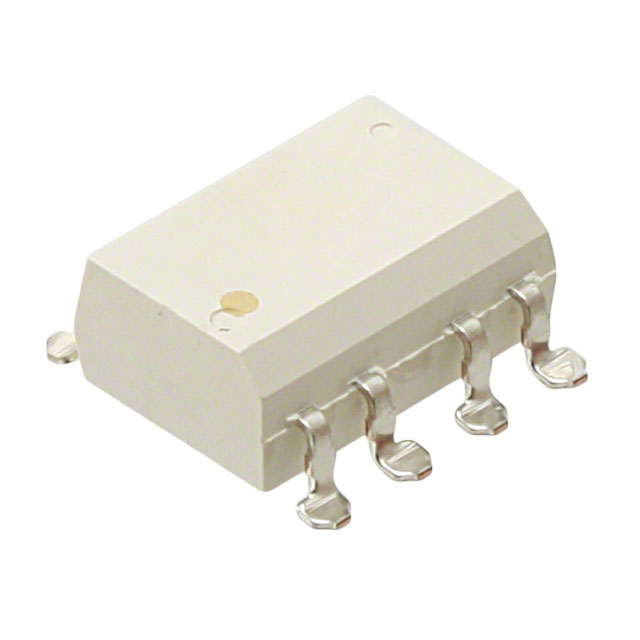

.jpg "TLP222A-2(LF1,F)")
.jpg "TLP222G(F)")

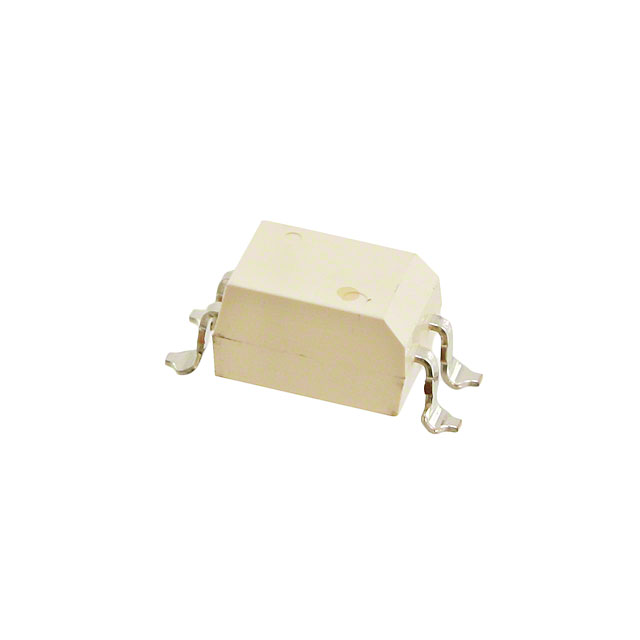

.jpg "TLP222G(TP1,F)")
