.jpg "TLP3122(F)")
TLP3122(F)
lmages are for reference only.TLP3122(F)
SSR RELAY SPST-NO 1A 0-60V
Datasheet4-SOP (0.173", 4.40mm)
87,650 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
TLP3122(F)
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP3122 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.15VDC |
| Voltage - Load | 0 V ~ 60 V |
| Load Current | 1 A |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 4-SOP (0.173", 4.40mm) |
| Supplier Device Package | 4-SOP |
| Approval Agency | CSA, cUL, UL, VDE |
| Grade | - |
| Qualification | - |
| Base Product Number | TLP312 |
| On-State Resistance (Max) | 250 mOhms |

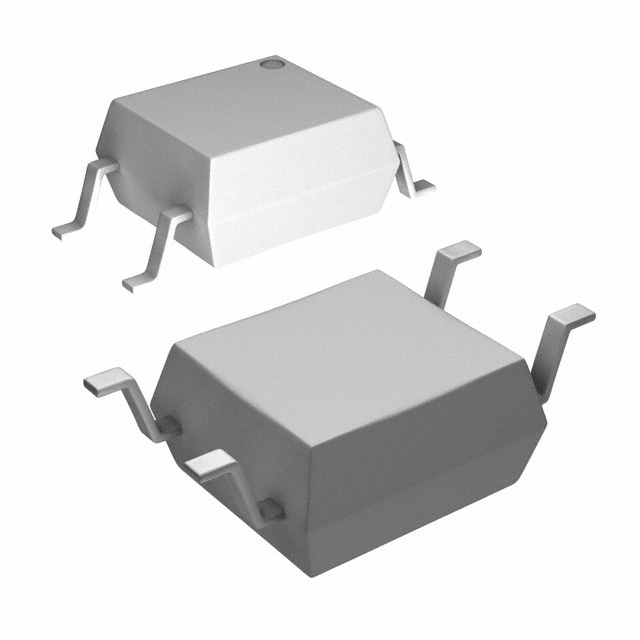

| Product Attribute | .jpg "TLP3122(TP,F)") |
 |
 |
.jpg "TLP3100(F)") |

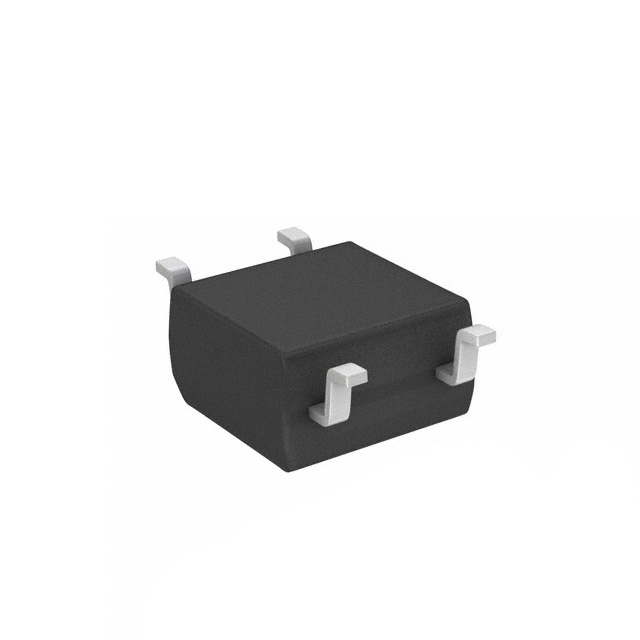

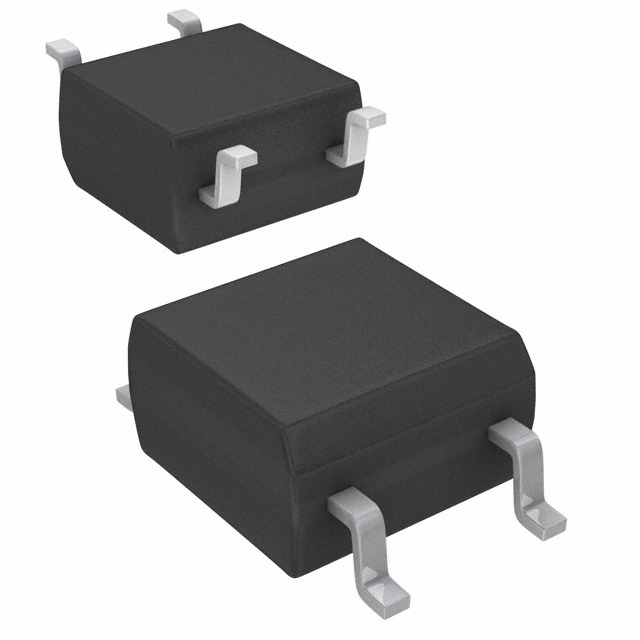

| Part Number | TLP3122(TP,F) | TLP3122A(E | TLP3122A(TPL,E | TLP3100(F) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SSR RELAY SPST-NO 1A 0-60V | SSR RELAY SPST-NO 1.4A 0-60V | SSR RELAY SPST-NO 1.4A 0-60V | SSR RELAY SPST-NO 2.5A 0-20V |
| Series | TLP3122 | TLP3122A | TLP3122A | TLP3100 |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
