SSR RELAY SPST-NO 2.5A 0-60V
Datasheet4-SMD, Gull Wing
92,589 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

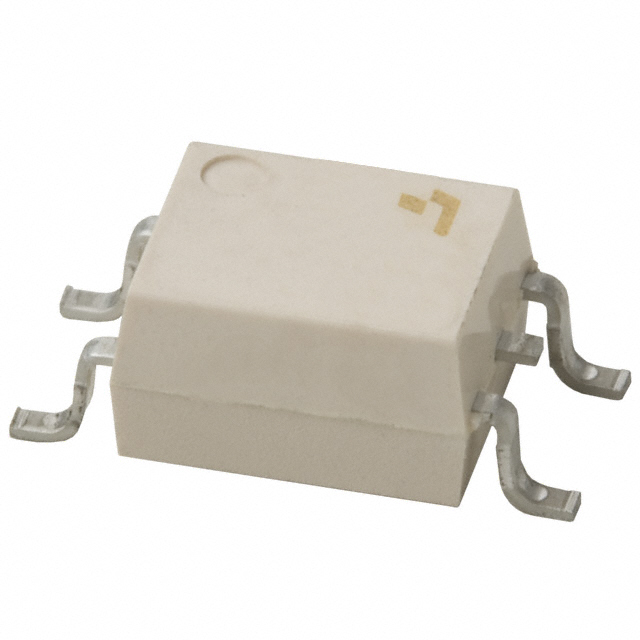

Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing
TLP3147(F
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP3147 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.65VDC |
| Voltage - Load | 0 V ~ 60 V |
| Load Current | 2.5 A |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 110°C |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Approval Agency | CSA, cUL, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | TLP314 |
| On-State Resistance (Max) | 100 mOhms |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP3147(TP,F | TLP3145(F | TLP3145(TP,F | TLP3146(F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | |||
| Description | SSR RELAY SPST-NO 2.5A 0-60V | SSR RELAY SPST-NO 400MA 0-200V | SSR RELAY SPST-NO 400MA 0-200V | SSR RELAY SPST-NO 3.3A 0-30V |
| Series | TLP3147 | TLP3145 | TLP3145 | TLP3146 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
