TLP521-2XSMT&R

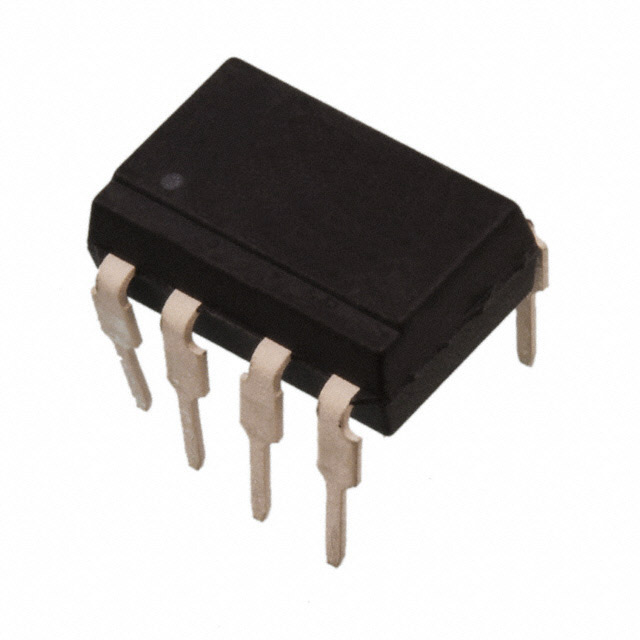

lmages are for reference only.TLP521-2XSMT&R
8PIN TRANSISTOR OUTPUT, DUAL CHA
Datasheet8-SMD, Gull Wing
18,421 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 2 Channel 8-SMD
TLP521-2XSMT&R
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | TLP521-2 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 2 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP521-2XSM | TLP521-2 | TLP521-2BL | TLP521-2BLG |
| Manufacturer | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5.3KV 2CH TRANS 8SMD | 8PIN TRANSISTOR OUTPUT, DUAL CHA | 8PIN TRANSISTOR OUTPUT, DUAL CHA | 8PIN TRANSISTOR OUTPUT, DUAL CHA |
| Series | - | TLP521-2 | TLP521-2 | TLP521-2 |
| Packaging | Tube | Tube | Tube | Tube |
