TLP5752H(D4TP4,E

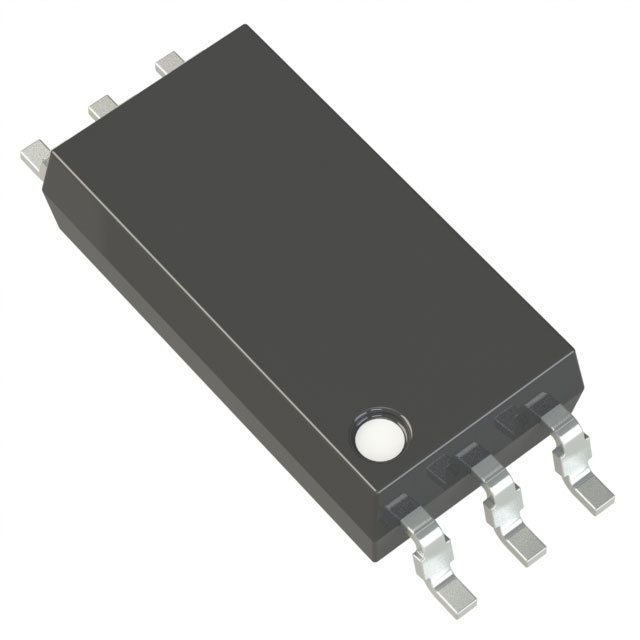

lmages are for reference only.TLP5752H(D4TP4,E
OPTOISO 5KV 1CH GATE DVR 6SO
Datasheet6-SOIC (0.295", 7.50mm Width)
85,706 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO
TLP5752H(D4TP4,E
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 50ns |
| Rise / Fall Time (Typ) | 15ns, 8ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Voltage - Output Supply | 15V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SO |
| Approval Agency | CQC, CSA, cUL, UL, VDE |
| Base Product Number | TLP5752 |
| Current - DC Forward (If) (Max) | 20 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP5752H(D4-TP,E | TLP5752H(D4LF4,E | TLP5751(D4,E | TLP5751(D4-LF4,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | |||
| Description | OPTOISO 5KV 2CH GATE DVR 6SO | OPTOISO 5KV 1CH GATE DVR 6SO | OPTOISO 5KV 1CH GATE DVR 6SO | OPTOISO 5KV 1CH GATE DVR 6SO |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Bulk | Tube | Tube | Tube |
