Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD

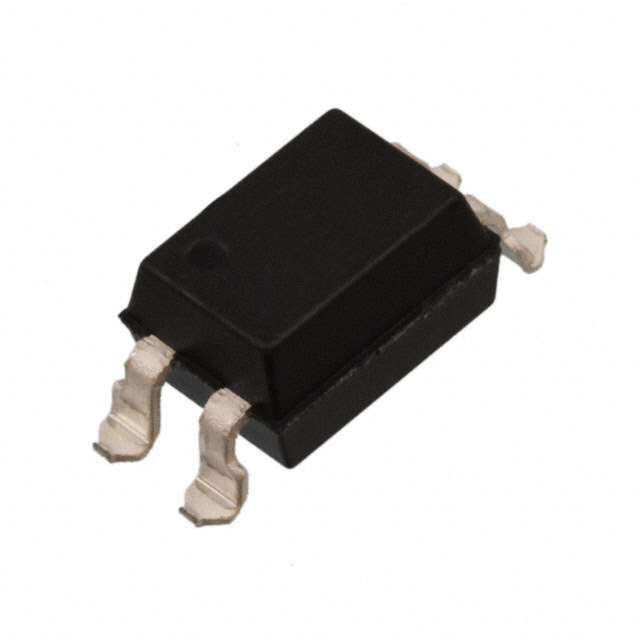

TLP621SMT&R
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | TLP621 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD (0.300", 7.62mm) |
| Supplier Device Package | 4-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
.jpg "TLP620(F)") |
 |
| Part Number | TLP621SM | TLP620 | TLP620(F) | TLP620-2 |
| Manufacturer | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Toshiba Semiconductor and Storage | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | 4PIN TRANSISTOR OUTPUT, SINGLE O | 4PIN AC INPUT, SINGLE OPTOCOUPLE | OPTOISOLATR 5KV TRANSISTOR 4-DIP | 8PIN AC INPUT, DUAL CHANNEL OPTO |
| Series | TLP621 | TLP620 | - | TLP620-2 |
| Packaging | Tube | Tube | Tube | Tube |
